Max761esa

Updated September 20, 2026

Overview

Product sourcing insights & recommendations

29 来源

The MAX761ESA is a high-efficiency step-up (boost) DC-DC regulator originally manufactured by Maxim Integrated (now Analog Devices). It is officially classified as Obsolete/Discontinued Digikey. Despite its EOL status, technical interest remains high for legacy repairs and specific battery-powered applications due to its low quiescent current.

Technical Insights

* Performance: Designed for single- or dual-cell battery systems (input range: 2V to 16.5V), providing a fixed 5V/12V or adjustable output Jinftry Digikey.

* Efficiency: Features a 300kHz switching frequency and peak efficiency of approximately 86%, with an ultra-low quiescent current of 110µA Digikey.

* Design Considerations: It uses a Current-Mode Pulse-Width-Modulation (PWM) scheme and requires an external diode as it lacks a synchronous rectifier Digikey.

Market Trends & Availability

* Stock Status: While major distributors like DigiKey list it as obsolete Digikey, independent B2B suppliers in Shenzhen currently offer "original stock" or "BOM service" units Alibaba Alibaba. Prices in the secondary market typically range from $0.10 to $5.00 depending on quantity and supplier reliability.

* Price Volatility: Electronic components in 2026 are experiencing significant price surges and supply chain volatility Accio. Legacy parts like the MAX761ESA are particularly susceptible to price fixing and artificial demand due to limited remaining inventory Tomshardware.

Recommended Alternatives

For new designs or replacements, the following modern controllers are recommended:

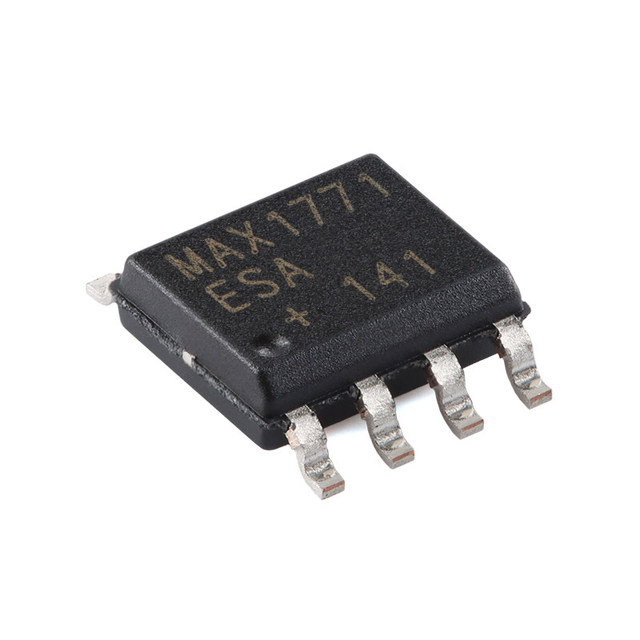

1MAX1771ESA: The most common functional successor. It is a high-efficiency controller that supports similar voltage ranges but requires an external FET Digikey Alibaba.
2LT1372: A viable alternative from the Analog/Linear line, though it may require a PCB layout change due to different pinouts Digikey.

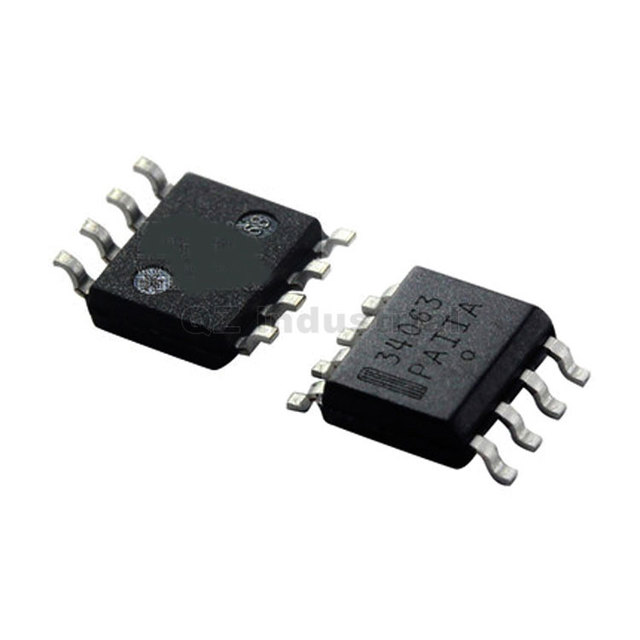

3MC34063A: A widely available, low-cost alternative for general-purpose 1.5A switching, though it has lower efficiency compared to the MAX761 Alibaba.

Based on these findings, you might want to:
