MAX77801EWP+T Sourcing Guide for Repair & Production

The MAX77801EWP+T is a high-efficiency buck-boost converter developed by Maxim Integrated (now Analog Devices). It is primarily known for its critical role in managing power for battery-operated consumer electronics, most notably as the core power regulator in the Nintendo Switch OLED Analog Amazon.

Key Technical Insights

Dual Mode Operation: It seamlessly transitions between buck (step-down) and boost (step-up) modes, maintaining a stable output voltage (2.6V to 4.18V) as a Li-ion battery fluctuates between 2.3V and 5.5V Analog Mouser.
High Efficiency: The IC achieves up to 97% peak efficiency, which is vital for extending battery life in high-drain portable devices Analog.

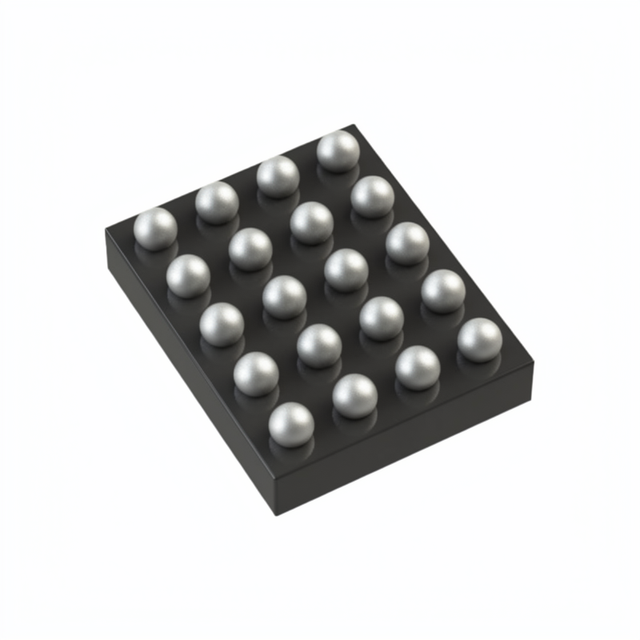

Compact Design: It uses a miniature 20-bump WLP package (2.13mm x 1.83mm), making it ideal for space-constrained mobile and wearable designs Analog Alldatasheet.

Market Trends & Insights

Repair Economy Driver: There is significant "long-tail" demand for this specific IC in the electronics repair market. It is a frequent failure point in Nintendo Switch OLED consoles that experience power issues or "black screens," leading to a robust market for individual replacement chips Tronicsfixforum Amazon.
Supply Stability: While many specialized ICs faced shortages in previous years, current data indicates stable availability from electronic component distributors in Shenzhen and Hong Kong Alibaba Alibaba.
Pricing Trends: Retail prices for individual repair units range from $2.80 to $19.50, while wholesale B2B pricing for bulk quantities (2500+ pieces) has dropped to as low as $0.43 to $0.51 per piece Kasynparts Alibaba.
