Mini HDMI SMT Connector Buying Guide

The 'mini hdmi smt' (Type C) connector market is characterized by a shift toward ultra-compact integration in portable media, professional photography, and industrial HMI systems. As devices become thinner, the demand for mid-mount and straddle-mount SMT configurations is rising to reduce PCB profile height Vistarelectronics Tme.

Product Insights

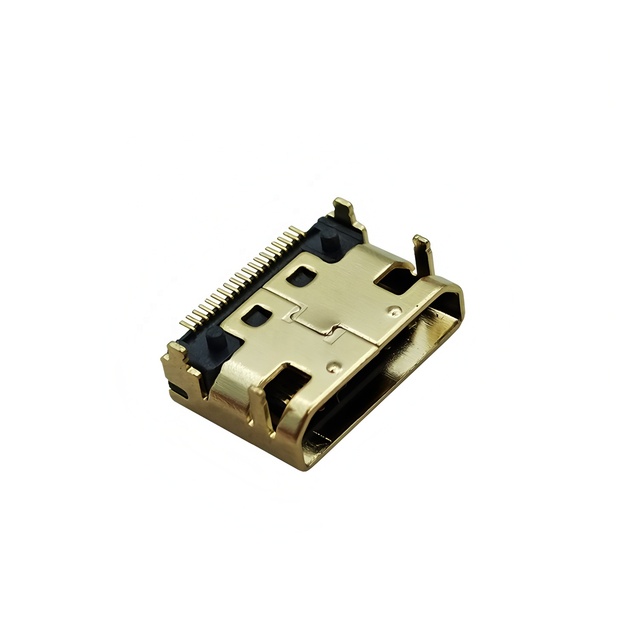

* Technical Standard: Mini HDMI SMT connectors utilize a 19-pin configuration with a fine 0.4 mm pitch, providing full HDMI 2.0/2.1 functionality in half the size of standard Type A connectors Te Avixa.

* Mounting Trends: While Right Angle Top Mount remains the standard for most PCBs, high-density applications are adopting Horizontal SMT and Mid-mount recessed styles to achieve flush device designs Te Connectorsupplier.

* Durability: High-end variants from manufacturers like TE Connectivity and Vistar Electronics support between 5,000 to 10,000 mating cycles, with operating temperatures ranging from -40°C to +100°C for industrial-grade applications Vistarelectronics Te.

Market Trends

* Pricing: Wholesale prices for bulk SMT connectors are highly competitive, ranging from $0.01 to $0.15 per unit depending on gold plating thickness (Gold Flash vs. 15µ”) and shell material (Stainless Steel vs. Copper Alloy) Alibaba Alibaba.

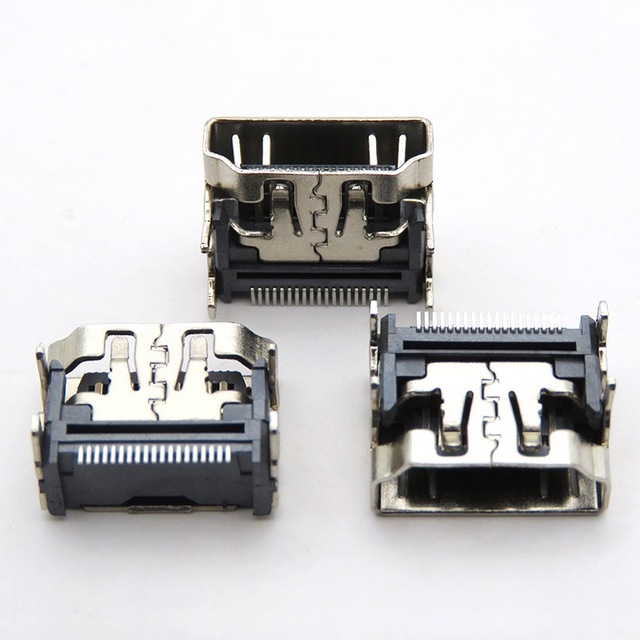

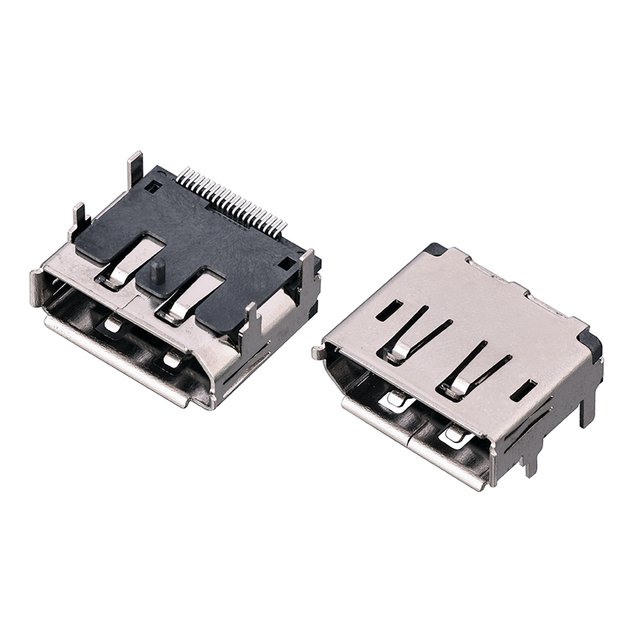

* Key Suppliers: The manufacturing landscape is concentrated in high-precision electronic hubs like Shenzhen and Ningbo, with leading factories such as Shenzhen MUP Industrial and Ningbo Keyang offering extensive R&D and IATF 16949 certified production lines Alibaba Alibaba.

I have compiled a detailed list of products and manufacturers matching these specifications in the files below.
