Mip3055

Updated September 20, 2026

Overview

Product sourcing insights & recommendations

19 来源

The phrase "MIP3055" is likely a designation or variant within the iconic 3055 series of NPN power transistors, most commonly recognized as the TIP3055 or MJE3055 Onsemi Electronics-Notes. These components are fundamental to the electronics industry, serving as rugged, general-purpose solutions for power switching and audio amplification Ariat-Tech.

1. Product Identification & Technical Context

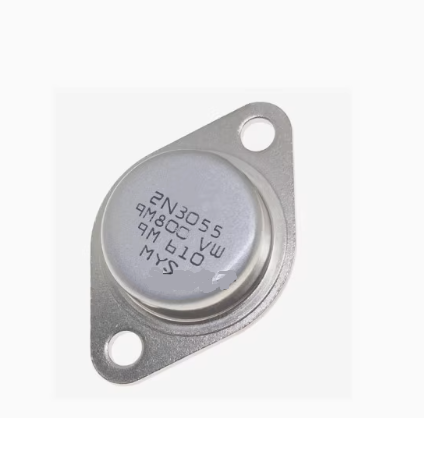

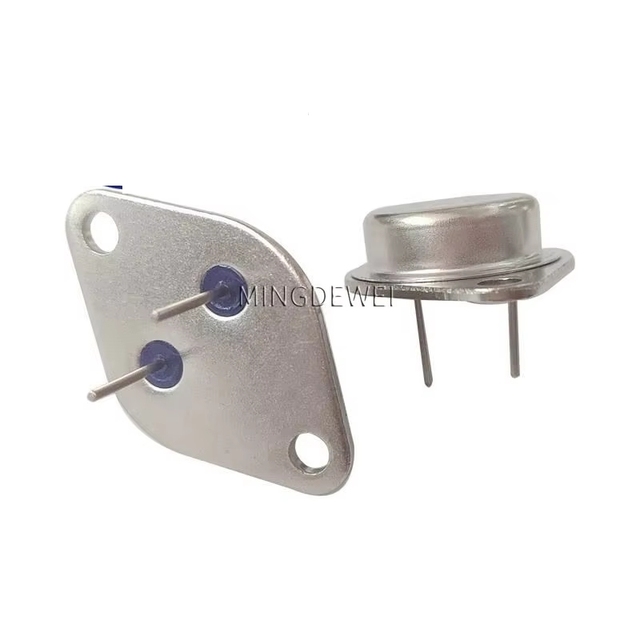

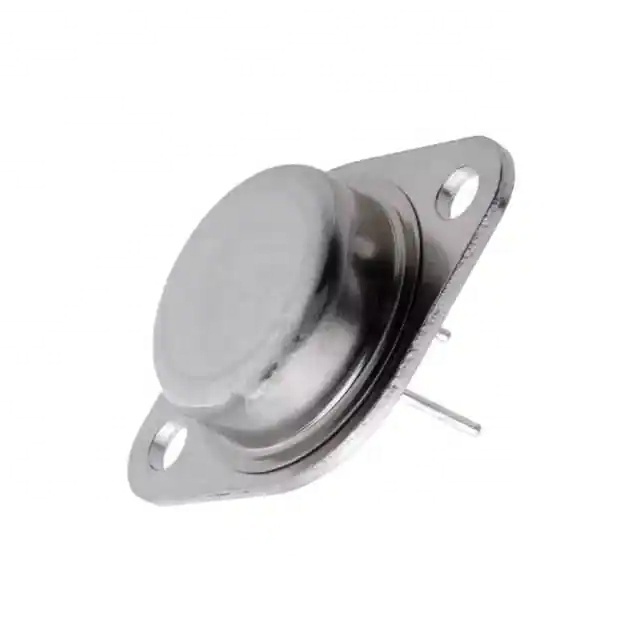

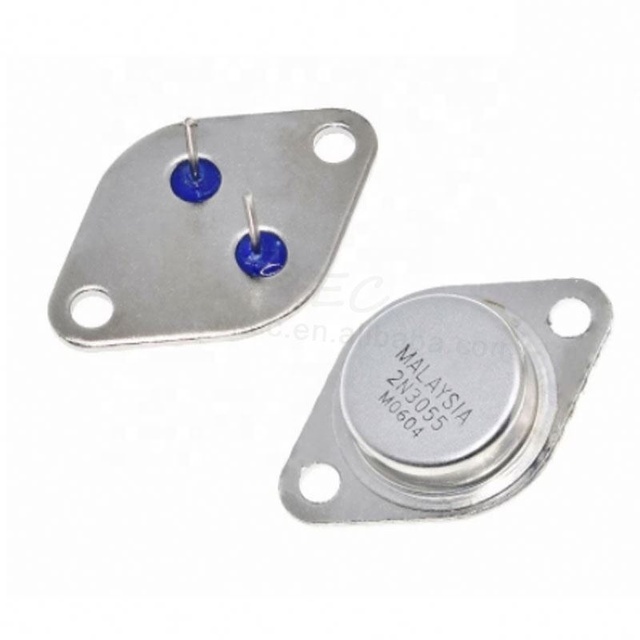

The 3055 family originated from the metal-cased 2N3055 and has evolved into more compact, plastic-packaged variants Wikipedia:

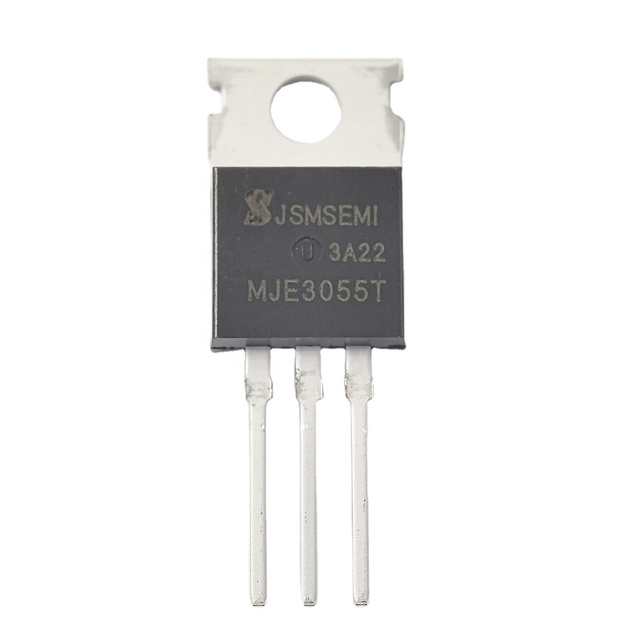

* MJE3055 (TO-220): A compact version designed for high-density circuits, capable of handling 10A current and 75W–90W power dissipation Electronics-Notes Brainly.

* TIP3055 (TO-247/TO-218): A higher-power variant supporting up to 15A current and 90W dissipation, often used in large power supplies and high-fidelity audio equipment Onsemi.

2. Market Trends & Insights

* Persistent Demand for Legacy Tech: Although considered "obsolete" by some high-end manufacturers, the 3055 series remains in high demand due to its reliability, low cost, and ease of implementation in legacy repairs and DIY electronics Electronics-Notes.

* Manufacturing Stability: The global market for these power transistors is steady, driven by industrial automation and renewable energy solutions Accio. Suppliers, primarily located in Shenzhen, China, continue to mass-produce these components in large volumes Alibaba Alibaba.

* Price Dynamics: In the wholesale market, units are highly affordable, with large-volume prices (1,000+ pieces) as low as $0.11 per unit, while smaller retail quantities range from $0.60 to $1.00 Alibaba Alibaba.

3. Sourcing & Supplier Landscape

Major B2B suppliers in the Shenzhen electronics hub, such as Shenzhen Quanyuantong Electronics and Shenzhen Sacoh Electronic, offer these transistors with certifications like ISO standards and low lead times Alibaba Alibaba. Buyers often procure them as part of larger "BOM (Bill of Materials)" lists due to their ubiquitous nature in circuit design Alibaba.

Detailed data on pricing, product listings, and verified suppliers can be found in the attached files.

Based on these findings, you may want to explore these next steps:
