Multiswitch Amplifier

Market & Product Insights: Multiswitch Amplifiers

The multiswitch amplifier market is evolving from simple signal boosting to intelligent, multi-input distribution management. In 2026, the core focus is on high-density residential systems and integration with modern 4K/UHD broadcast standards LinkedinImarcgroupDipolnet.

#### 1. Key Technical Product Differentiation

Understanding the specific "amplifier" role is critical for system design. These three types are often confused but serve distinct purposes in an SMATV (Satellite Master Antenna TV) network:

* Multiswitch Amplifiers: Typically integrated into or paired with a multiswitch to counteract internal switching and splitting losses. Modern "Profi Class" units often feature Active Terrestrial modes to provide -5 to +12dB gain for local TV signals Emp-CentauriDipolnet.

* Launch Amplifiers: Heavy-duty "headend" units placed near the satellite dish. They are essential for long trunk cable runs (over 60m) where signal loss can exceed 30dB SatellitesuperstoreDipolnet.

* Distribution Amplifiers: Used in cascaded systems to maintain signal balance across multiple staircases or building sections, often featuring "tilt" adjustments to compensate for high-frequency cable attenuation Dipolnet.

#### 2. Strategic Market Trends (2026)

The industry is moving toward "Fiber-RF" convergence and digital switching:

* Optical-to-Copper Hybrids: Amplifiers are increasingly acting as optical receivers, converting satellite fiber signals back to RF for local building distribution Dipolnet.

* dCSS/dSCR Adoption: Digital Channel Stacking Switch technology is becoming standard to support multi-tuner receivers (like Sky Q) over a single cable Dipolnet.

* Energy Efficiency: "Green Mode" amplifiers now shut down stages when no active satellite receivers are detected to reduce operational costs Dipolnet.

* LTE/5G Filtering: Stricter filtering for 700MHz/800MHz bands is mandatory to prevent wireless interference with satellite IF frequencies Dipolnet.

#### 3. Top Sourcing Options

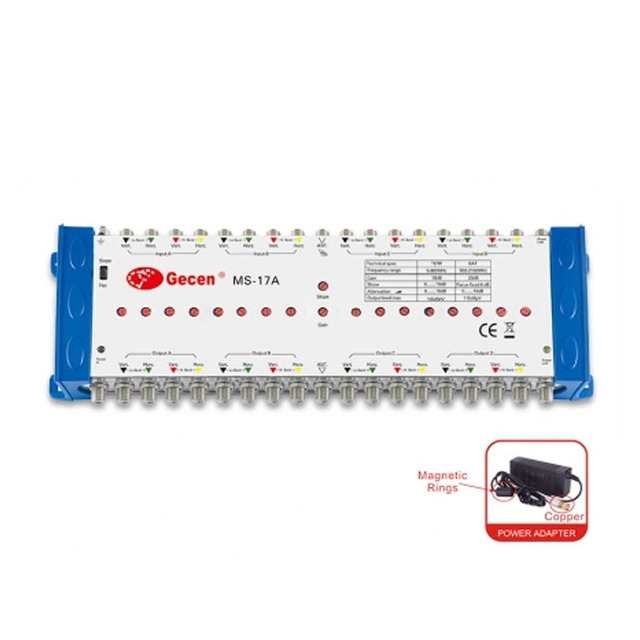

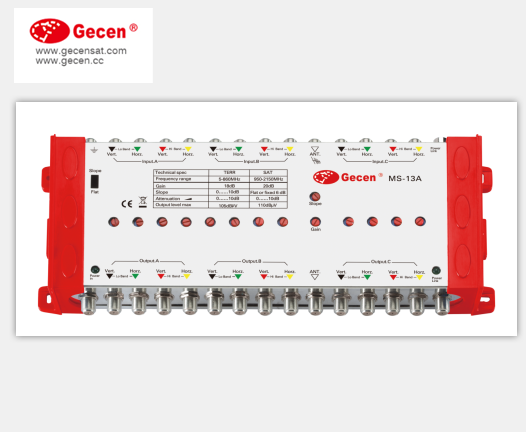

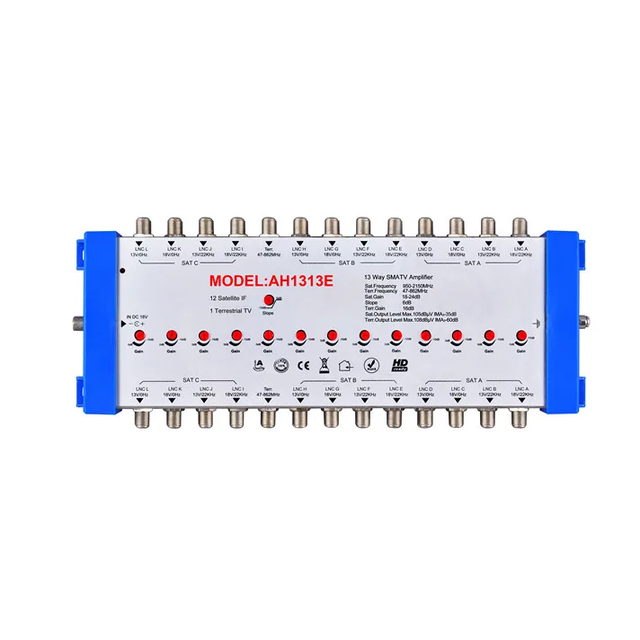

Current B2B offerings include cascadable multiswitch amplifiers with adjustable gain (0-10dB or up to 30dB) and support for 5 to 17 inputs, handling both satellite and terrestrial signals.
