New Cd4511be

Updated September 20, 2026

Overview

Product sourcing insights & recommendations

21 来源

The CD4511BE is a CMOS BCD-to-7-segment latch decoder driver commonly used to interface digital logic with LED displays. As a legacy 4000-series component, it remains a staple in industrial equipment, digital counters, and educational electronics due to its robust 3V–18V operating range and high NPN bipolar output sourcing capability (up to 25 mA). Utmel Ariat-Tech

Market Trends & Insights

* Continued Industrial Demand: While consumer electronics are shifting toward high-resolution OLED/MicroLED drivers, the global display driver market is still projected to reach $14.72 billion by 2031, growing at a CAGR of 8.73%. Mordorintelligence The CD4511BE benefits from this steady demand in the industrial and automotive sectors where simple, reliable decimal displays are still required.

* Automotive Segment Growth: Automotive display applications are the fastest-growing sector (15.25% CAGR), driving a need for robust, temperature-resistant drivers like the CD4511B series (operating up to 125°C). Mordorintelligence Digikey

* Supply Chain Resilience: Mature nodes used for these ICs are seeing renewed regional investment, particularly in China (Shenzhen hub), to ensure supply stability for essential logic components. Mordorintelligence

Technical Summary

* Function: Converts 4-bit Binary Coded Decimal (BCD) input to 7-segment output. Build-Electronic-Circuits Utmel

* Key Features: Includes internal latches for data storage, a Lamp Test ($\overline{LT}$) for display diagnostics, and Blanking ($\overline{BL}$) for brightness control. Ti Utmel

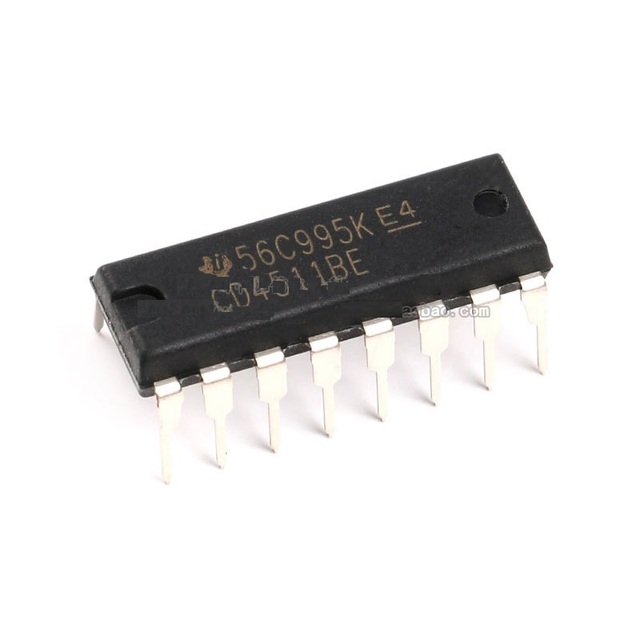

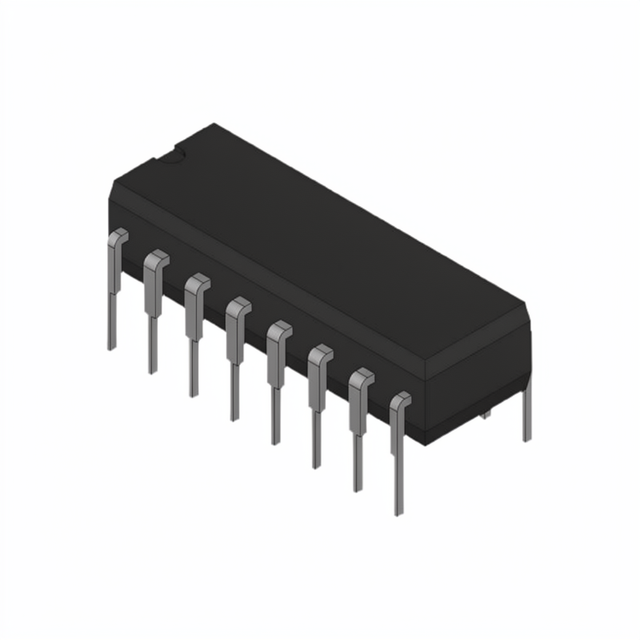

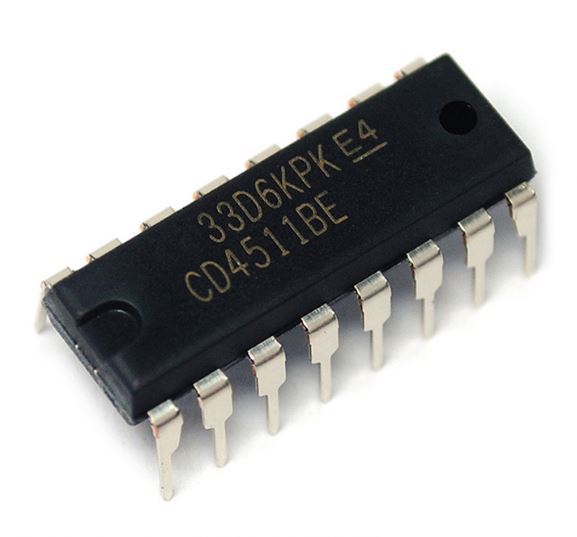

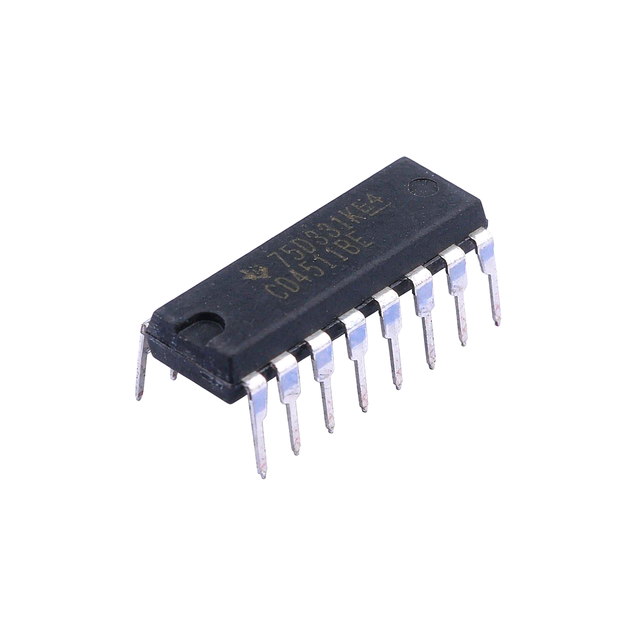

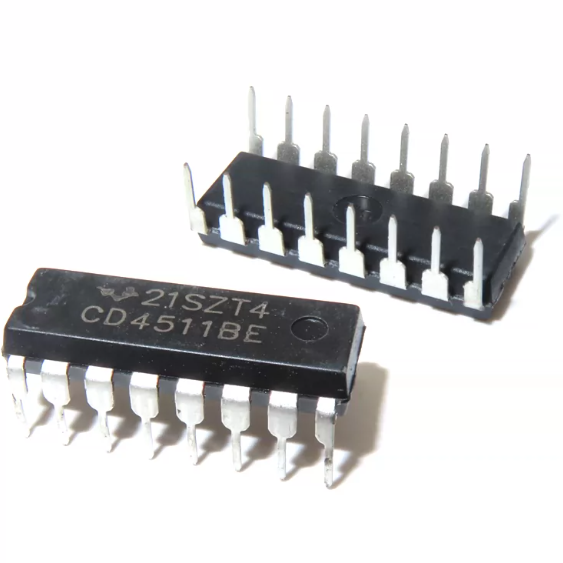

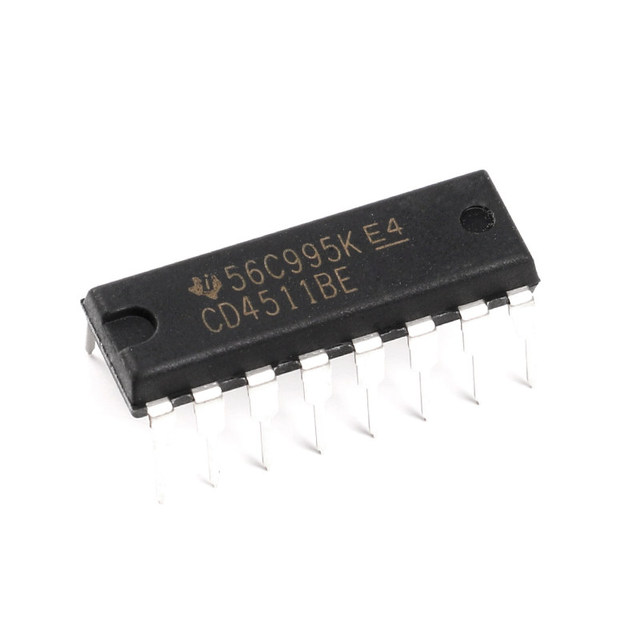

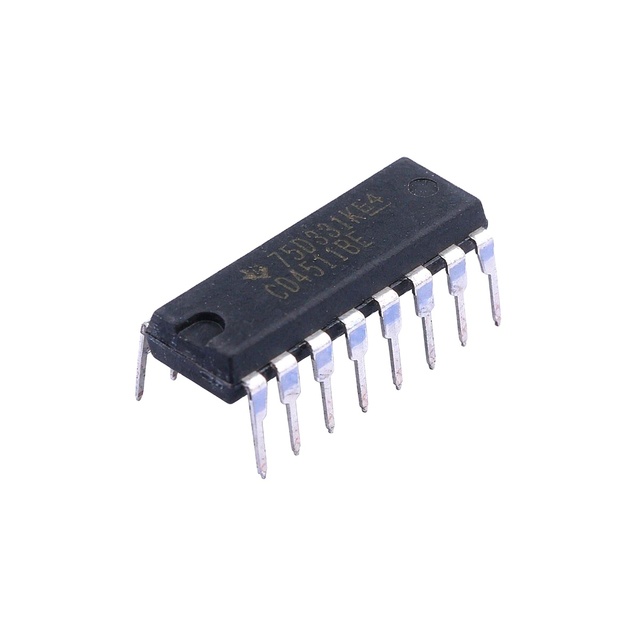

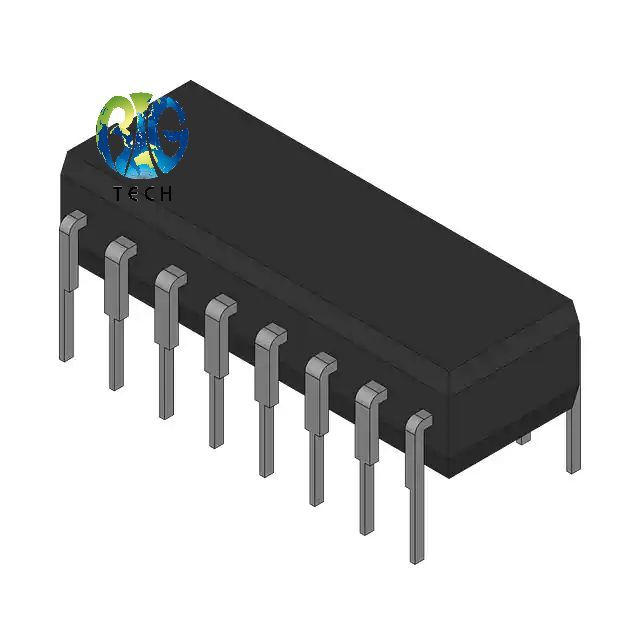

* Package: Standard 16-pin PDIP (through-hole), making it ideal for breadboarding and robust PCB mounting. Kitsguru Digikey

Sourcing Overview

Current market pricing for wholesale quantities ranges from $0.79 to $1.50 per unit, depending on order volume and authenticity certification. Alibaba Alibaba Most high-volume suppliers are concentrated in Shenzhen, offering both original Texas Instruments stock and high-quality functional equivalents. Alibaba Alibaba
