NGFF IPEX4 Antenna Cable Guide for M.2 Wireless Modules

The phrase 'NGFF IPEX4' refers to the industry-standard combination of the M.2 (formerly NGFF) form factor and the 4th Generation IPEX (MHF4) miniature RF connector Tejte. This combination has become the dominant standard for wireless connectivity in modern laptops, compact desktops, and high-speed IoT devices.

1. Key Technical Insights

* M.2 (NGFF) Grounding: IPEX4 (MHF4) is the designated connector for M.2 wireless modules, succeeding the larger IPEX1 (U.FL) used in older Mini-PCIe cards Tejte Elecbee.

* Critical Miniaturization: IPEX4 features a significantly smaller footprint (mating height ~1.2mm–1.7mm) compared to IPEX1 (~2.5mm), making it essential for ultra-thin laptops and space-constrained 5G terminals Rfelement.

* Performance: MHF4 is optimized for high-frequency applications, including Wi-Fi 6/6E/7 and 5G sub-6GHz bands, offering better signal integrity in dense circuitry Walmart Amazon.

* Installation Caution: These connectors are extremely delicate and often rated for fewer than 30 mating cycles; they require precise vertical insertion to avoid damaging the PCB pads Amazon Elecbee.

2. Market Trends & Applications

* Standardization Shift: The global antenna market is trending toward integrated, high-frequency solutions, with IPEX4 serving as the gateway to Wi-Fi 7 and 5G integration Prnewswire Amazon.

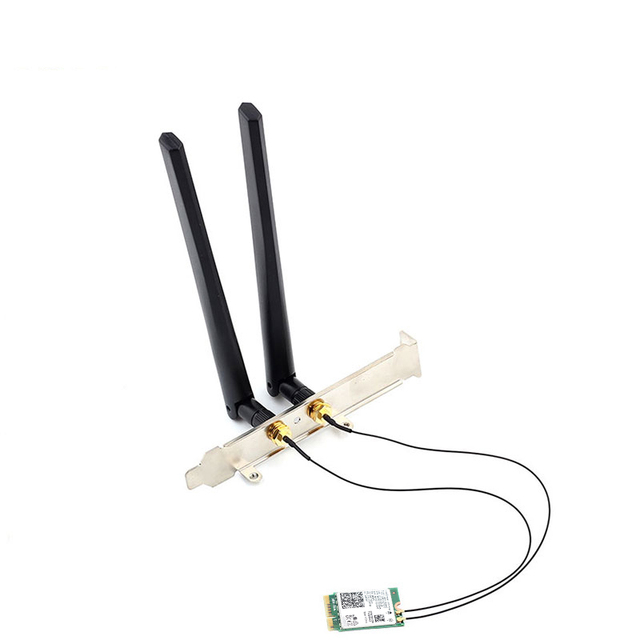

* DIY & Custom PC Builds: There is a strong secondary market for "Desktop Kits" that allow users to install M.2 laptop Wi-Fi cards (like the Intel AX210) into desktop motherboards using IPEX4-to-SMA pigtail cables Tejte Reddit.

* Industrial IoT Growth: While consumer tech uses IPEX4 for thinness, industrial gateways are increasingly adopting it to support 5G modules while maintaining modularity Elecbee.
