LCD Pinout Guide: How to Wire 16-Pin & I2C Displays

The phrase 'pinout lcd' refers to the standardized mapping of electrical connections for Liquid Crystal Display modules, a critical piece of technical data for engineers and makers. The market is currently dominated by two primary interface types: the legacy 16-pin parallel interface and the modern 4-pin I2C serial interface.

Technical Pinout Standards

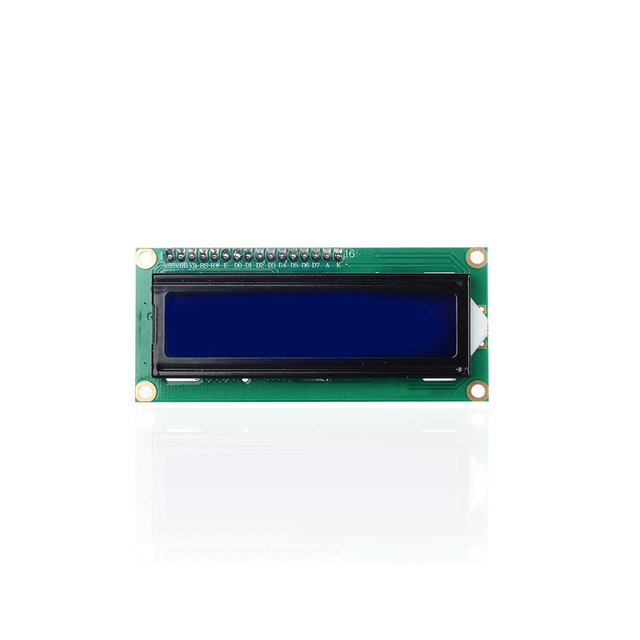

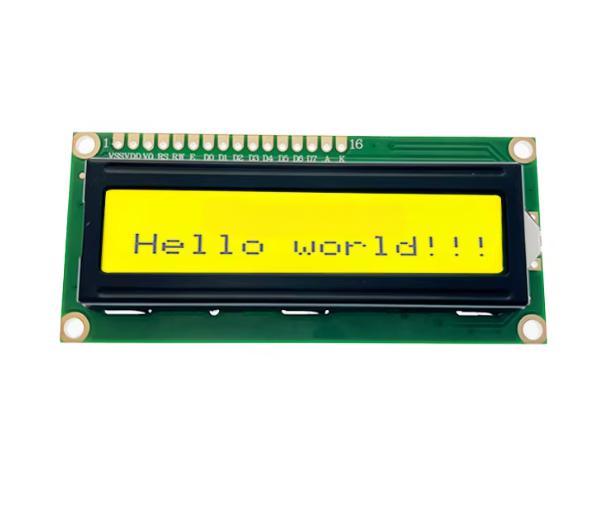

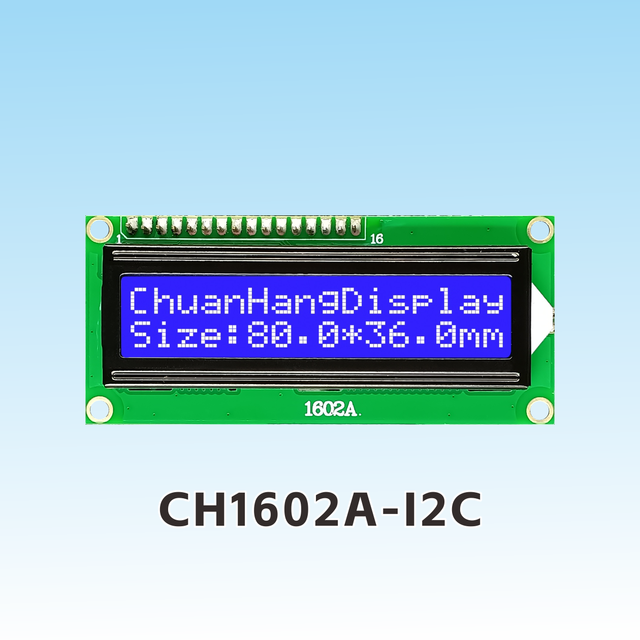

Standard character LCDs (1602/2004 models) based on the HD44780 controller typically feature a 16-pin parallel layout Subethasoftware.

Pin	Function	Description
1-2	VSS / VDD	Ground and Power (+5V typically)
3	V0	Contrast adjustment pin
4	RS	Register Select (Command/Data)
5	RW	Read/Write control
6	E	Enable signal
7-14	D0-D7	Parallel Data Bus (8-bit or 4-bit modes)
15-16	A / K	Backlight Anode (+) and Cathode (-)

Market & Product Trends

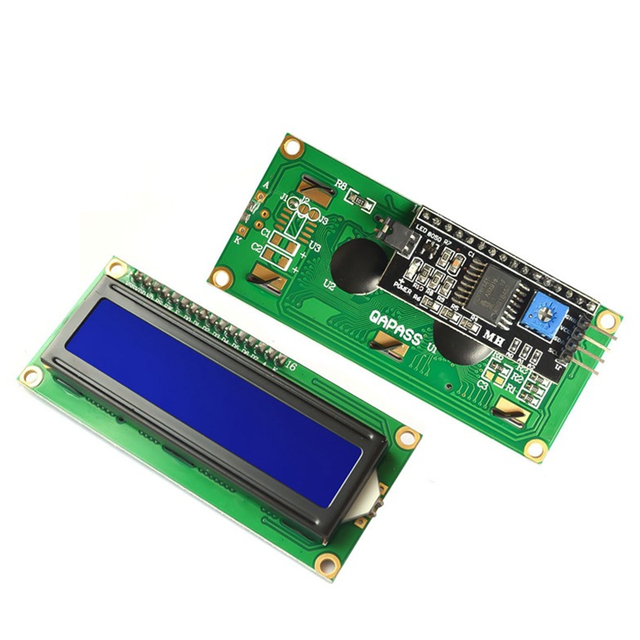

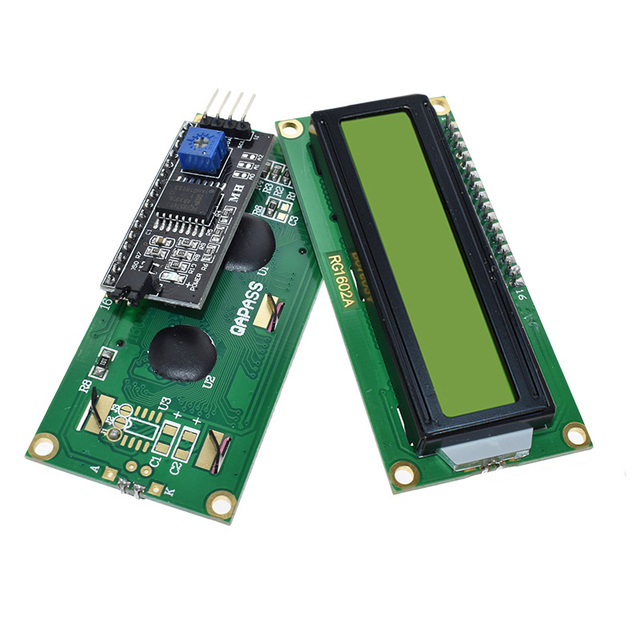

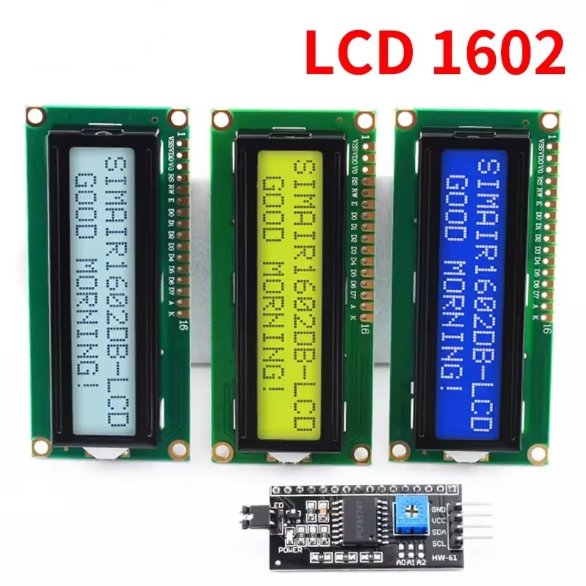

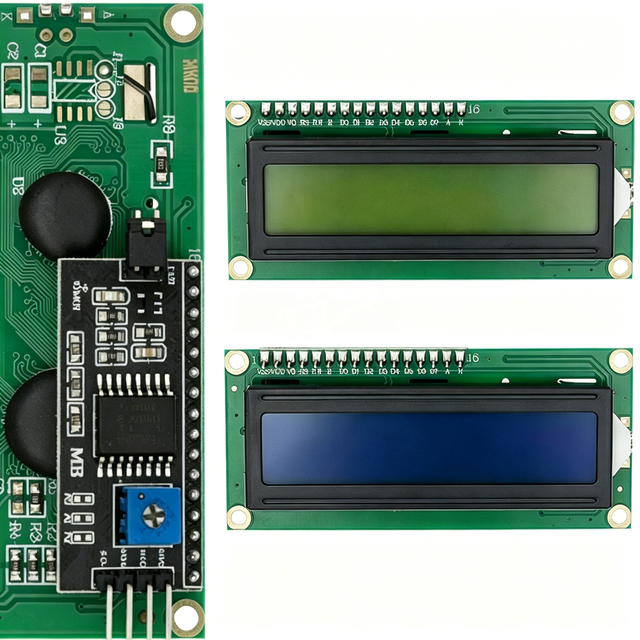

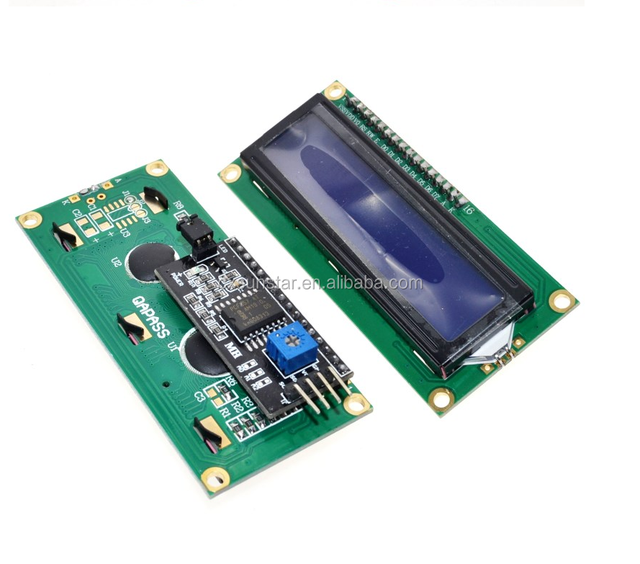

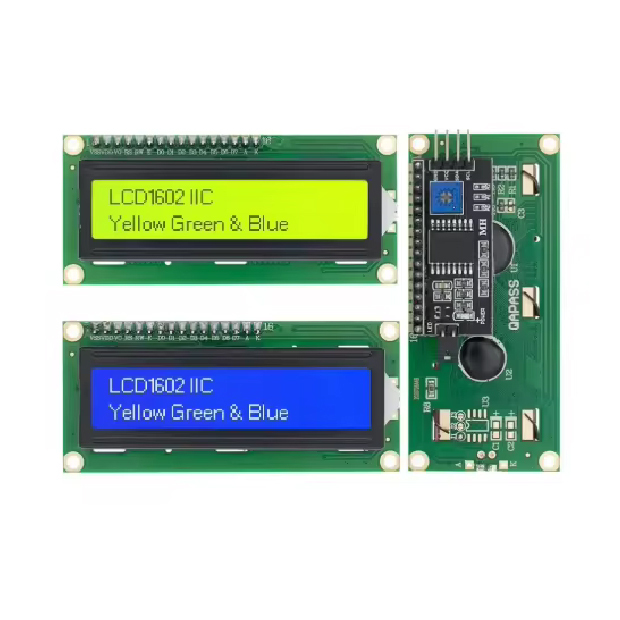

1Shift to I2C Dominance: Hobbyist and IoT markets have shifted heavily toward I2C-enabled displays. These modules use a "backpack" (PCF8574 chip) to convert the 16-pin parallel interface into a simple 2-wire serial bus (SDA/SCL), reducing pin usage from 10 down to just 2 pins Subethasoftware Sunfounder.
2ESP32 Integration: With the rise of the ESP32 and advanced IoT platforms, demand for TFT LCDs (color graphical displays) with SPI interfaces has surged. These often come as "Smart LCD" modules with built-in development boards Alibaba Alibaba.

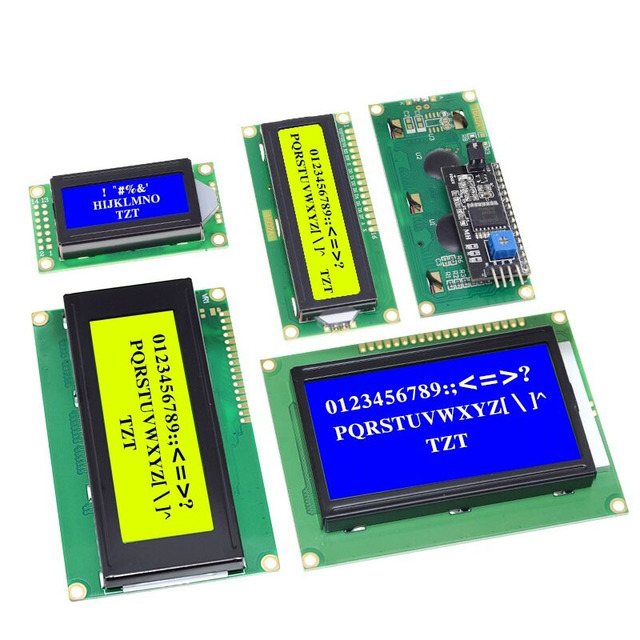

3Hobbyist Accessibility: The 1602 and 2004 character modules remain top-selling products due to their low price points (often under $1.50/unit) and robust library support in the Arduino ecosystem Alibaba Alibaba.
4Google Search Interest: Technical interest in "pinouts" reached a peak in early 2026, indicating a sustained need for documentation as new modular standards (like USB-C for displays) emerge Hackaday.
