LPD6803 Pixel LED Guide: Specs, Suppliers & Replacements

The term 'Pixel 6803' refers to the LPD6803, an early-generation 2-wire (clocked) LED driver chip used for individually addressable RGB lighting. While once a market standard for digital signage and DIY pixel projects, it is now considered a legacy protocol largely superseded by modern alternatives like the WS2811 and WS2812B.

Technical Specifications & Performance

* Color Depth: It uses 5-bit PWM per channel, providing only 32 levels of brightness per color (15-bit total). This results in visible color banding or "stepping" during smooth fades compared to modern 8-bit (24-bit total) chips Enttec.

* Clocked Interface: Unlike modern single-wire chips, it requires a separate Clock (CLK) and Data (DAT) line. This makes it more tolerant of inconsistent timing but increases wiring complexity Aliexpress Enttec.

* Voltage: It is versatile, supporting both 5V and 12V DC systems Aliexpress.

Market Trends & Commercial Insights

* Lifecycle Status (Legacy): The 6803 is primarily in the replacement and maintenance phase. New professional installations rarely use it due to its low color resolution and high wiring requirements Enttec.

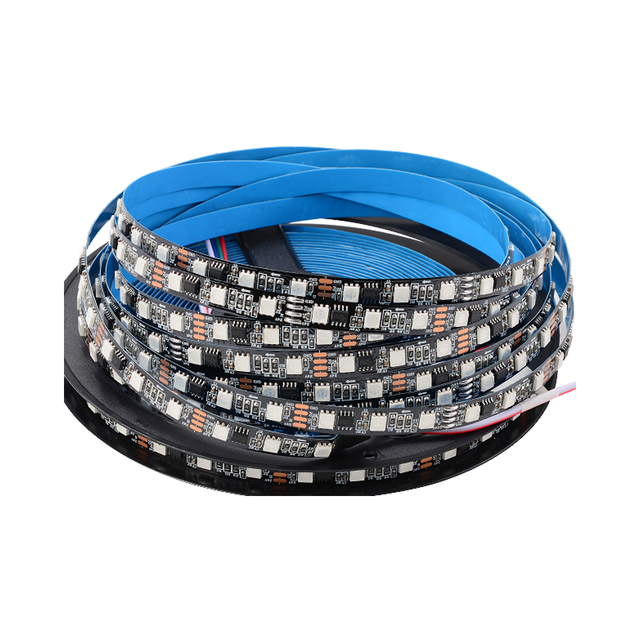

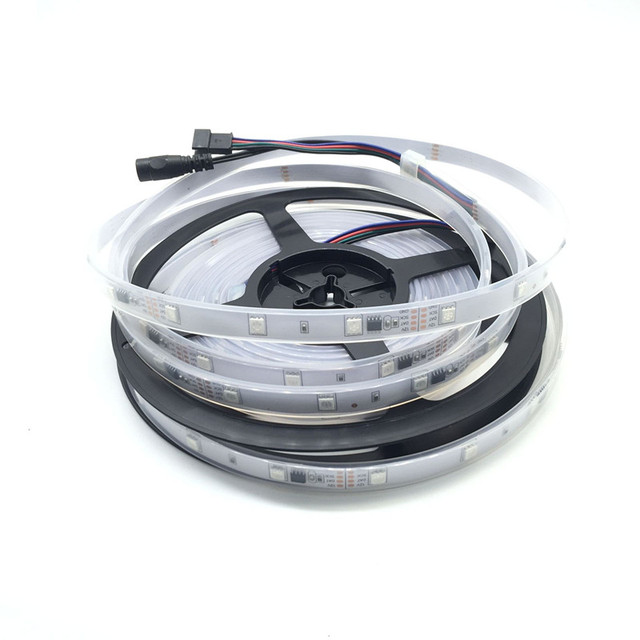

* Product Availability: Commercial supply is concentrated in Shenzhen, China, where it is sold as replacement "bullet" pixel modules for old signs or as 5050 RGB digital strips .

* Controller Trends: Modern LED controllers (like the SP108E or BC-820) still include 6803 support for backward compatibility, but 6803-exclusive controllers are becoming rarer .
