Platform Cable Usb Xilinx
Overview
Product sourcing insights & recommendations
The phrase 'Platform Cable USB Xilinx' refers to a critical hardware bridge used by developers to program and debug Xilinx (now AMD) FPGAs and CPLDs. As of 2026, the market is characterized by a shift toward the USB II (DLC10) standard and a high prevalence of reliable third-party "clone" alternatives.
1. Product Evolution & Current Standards
* The Industry Standard: The Platform Cable USB II (HW-USB-II-G) is the current professional benchmark Amd. It is backward compatible with the original cable but offers significantly higher performance, supporting JTAG clock speeds up to 24 MHz AmdPcbsync.
* Key Features: It features auto-sensing for target I/O voltages from 1.5V to 5.0V and integrates with Vivado and ISE software suites AmdMouser.
* Market Segments:
* Official AMD/Xilinx: High reliability, priced around $270 - $300 Amd.
* Premium Clones (ALINX, Waveshare): Reliable alternatives popular in industrial R&D, priced between $30 - $60 .
* Generic Clones: Cost-effective for education and basic testing, starting as low as $9.50 AlibabaAlibaba.
2. Market Trends & Strategic Insights (2026)
* Supply Chain Constraints: The FPGA market remains tight through 2026 due to demand from Edge-AI and 5G infrastructure Fusionww. This has kept demand for programming hardware consistent, with authorized distributors prioritizing industrial accounts Fusionww.
* The Rise of Edge-AI: FPGAs are projected to capture over 11% of the AI accelerator market by 2028, driving a long-term need for professional-grade development tools like the DLC10 Fusionww.
* Consumer Shift: Small-scale developers are increasingly opting for vetted clones (like Waveshare or ALINX) due to the significant price gap and sufficient reliability for non-mission-critical applications PcbsyncYoutube.
3. Common Technical Challenges & Fixes
* OS Compatibility: Users frequently encounter driver issues on Windows 11 Reddit. The fix often involves manually updating drivers via Device Manager using the `.inf` files located in the Vivado installation directory Pcbsync.

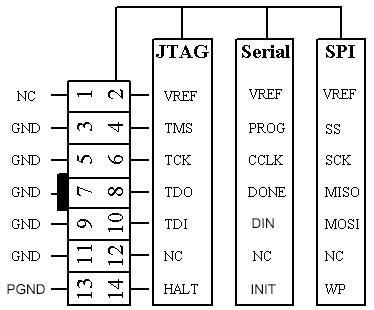

* Hardware Diagnostics: The most common "Amber LED" error typically indicates an issue with the VREF (target voltage reference). The cable requires at least 1.5V on Pin 2 of the target header to function AmdPcbsync.
* Linux Setup: Linux users must run the `install_drivers` script with root privileges and add their user to the `dialout` group to enable USB communication Pcbsync.
4. Sourcing & Pricing Summary
I have compiled a list of available products ranging from original hardware to high-quality industrial clones.
| Product Type | Typical Price Range | Best For |
|---|---|---|
| Official AMD USB II | $270 - $300 | Production & High-Reliability Projects |
| Industrial Clone (e.g. Waveshare) | $45 - $60 | R&D, Lab Testing |
| Economy Clone | $10 - $25 | Education, Prototyping |
I can help you with further market or technical analysis for this product. Would you like me to:
Xilinx Fpga Jtag Programmer Cable
Products · 2 lists
ALINX Platform Cable USB FPGA for XILINX FPGA JTAG Program Download
Shanghai Xuanxin Technology Co., Ltd.🇨🇳CN7 yrs
ALINX Platform Cable USB FPGA for XILINX FPGA JTAG Program Download High-Speed Download Supports FPGA Chips
Shanghai Xuanxin Technology Co., Ltd.verified🇨🇳CN2 yrs

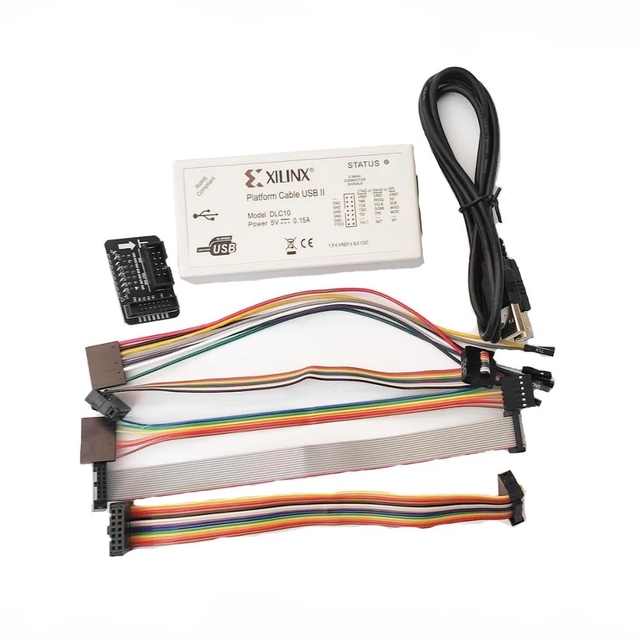

Upgraded Version DLC10 Xilinx Platform Cable USB Download Cable Jtag Programmer for FPGA CPLD CY7C68013A Replace DLC9LP
Shenzhen Youxinbang Technology Co., Ltd.🇨🇳CN2 yrs
RUSIT USB Download Cable Jtag Programmer FPGA CPLD C-Mod XC2C64A M102 LVTTL LVCMOS 3.3V 2.5V 1.8V 1.5V JTAG SPI Impact
Shenzhen Ruist Electronic Technology Co., Ltd.🇨🇳CN6 yrs
Xilinx Platform USB Download Cable Jtag Programmer FPGA CPLD C-Mod XC2C64A M102 LVTTL LVCMOS 3.3V 2.5V 1.8V 1.5V JTAG SPI Impact
Shenzhen Kuongshun Electronic Business Department🇨🇳CN16 yrs
Waveshare USB Platform Cable Programmer & Debugger for Xilinx FPGA/CPLD Devices (with Board)
Wenfei Juding (Guangdong) International Trade Co., Ltd.🇨🇳CN1 yr
Xilinx Downloader Cable DLC10 Xilinx FPGA JTAG Simulator Platform Cable USB
Module Xilinx FPGA High-speed Programmer Xilinx Platform Cable Downloader SMT2 Cable CPLD
Shenzhen Dongxinda Technology Development Co., Ltd.🇨🇳CN7 yrs
DLC10 Xilinx Cable USB Download Cable FPGA/CPLD Downloader
Shenzhen Wufenghe Technology Co., Ltd.🇨🇳CN1 yr
Xilinx downloader line DLC10 emulator Platform Cable USB FPGA DLC9LP
Shenzhen Aizesheng Technology Co., Ltd.🇨🇳CN4 yrs

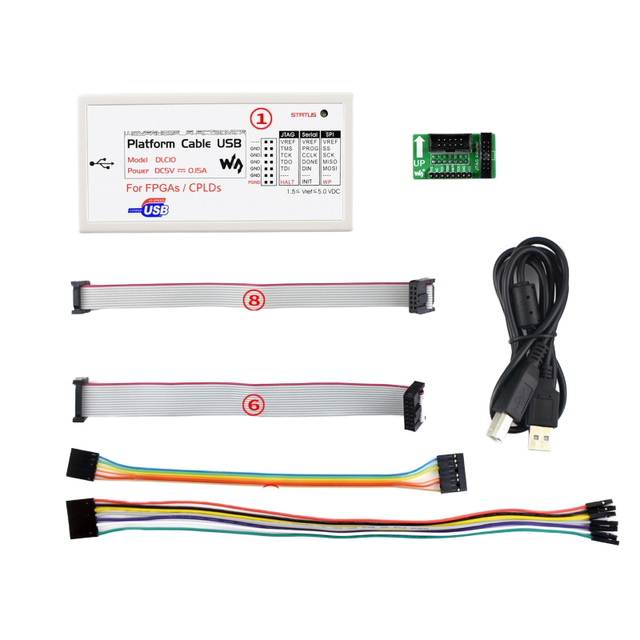

Waveshare Platform Cable USB-SKU-6530 ,Platform Cable USB, Programmer & Debugger for Xilinx Devices
Guangzhou Zhongchuang Youpin Technology Co., Ltd.🇨🇳CN5 yrsWaveshare Platform Cable USB-SKU-6530 ,Platform Cable USB, Programmer & Debugger for Xilinx Devices
