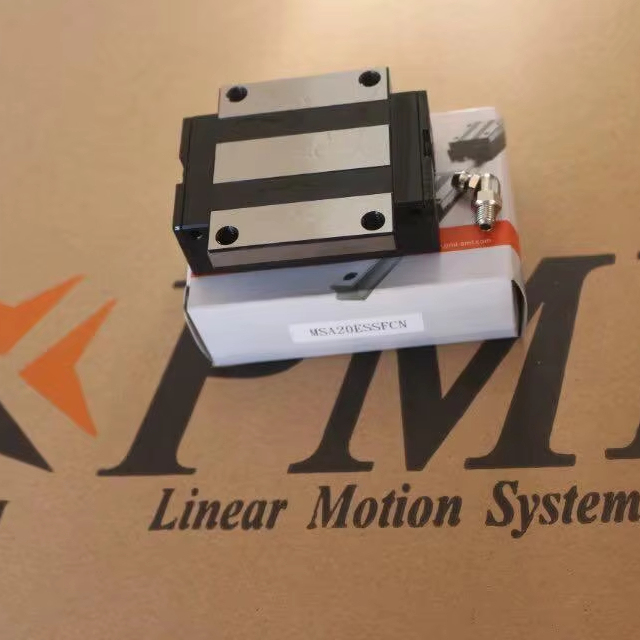

The PMI MSA20S is a high-rigidity, square-type linear guide carriage within the MSA series, engineered for heavy-load applications requiring equal load-bearing capacity in all four directions (radial, reversed radial, and lateral) Pmi-Amt Aresmotion. In 2026, the market for components like the MSA20S is being driven by the shift towards electromechanical actuators in Industry 4.0, the expansion of sub-3nm semiconductor manufacturing, and the rise of surgical robotics Mordorintelligence Grandviewresearch.

1. Key Technical Specifications

The MSA20S is characterized by its square profile, which is ideal for space-constrained environments where width is limited Pmi-Amt Pmi-Amt.

* Load Capacity: Dynamic load rating of 21.3 kN and static load rating of 31.9 kN Alibaba Mordorintelligence.

* Dimensions: Height of 30 mm, width of 44 mm, and a standard carriage length of 72.9 mm Pmi-Amt Indiamart.

* Design Advantage: Uses a 45° contact angle to achieve 4-way equal loading and high self-alignment capabilities to absorb installation errors Ybcomponents Aresmotion.

2. PMI Series Market Positioning

The MSA series represents PMI's flagship heavy-load ball-type guideway.

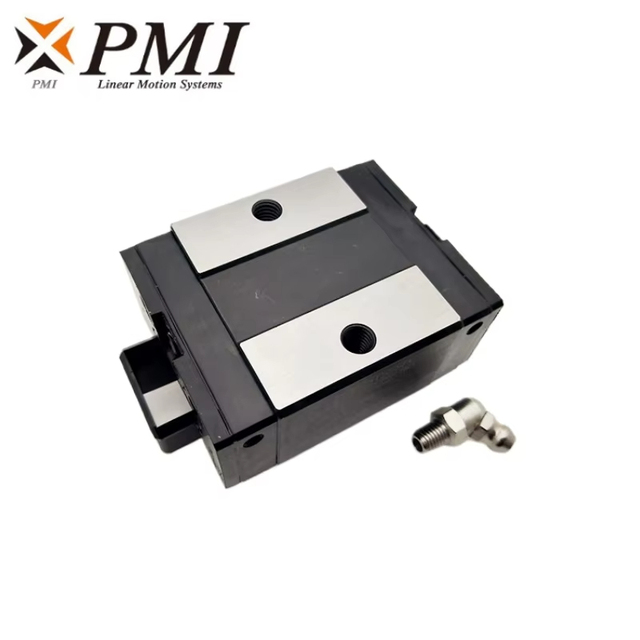

* Vs. MSB Series: The MSB is a compact, low-profile alternative for lighter loads Mordorintelligence.

* Vs. MSR Series: The MSR uses rollers instead of balls, offering significantly higher rigidity for heavy-duty CNC machining Mordorintelligence.

3. 2026 Market Insights & Sourcing Trends

The global linear motion market is projected to reach $13.61 billion in 2026, with a strong CAGR of 6.1% Mordorintelligence.

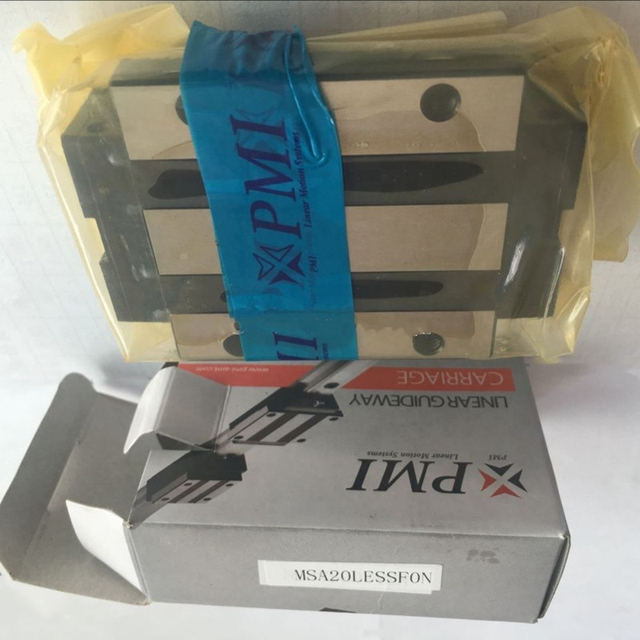

* Sourcing Landscape: B2B wholesale prices for original Taiwan PMI MSA20S carriages currently range from $12.67 to $20.00 per unit, with low MOQs (often starting at 1 piece) for verified distributors Alibaba Alibaba.

* Technological Shift: There is a growing preference for "sealed-for-life" lubrication systems and direct-drive linear motors, which are expected to outpace traditional ball-guided systems in high-precision electronics assembly Mordorintelligence Openpr.
