What are the differences between a data cable and a power cable?

www.quora.com

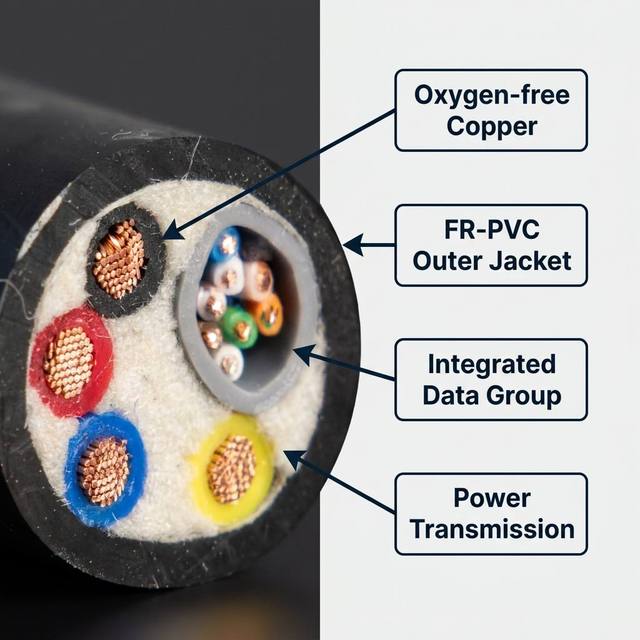

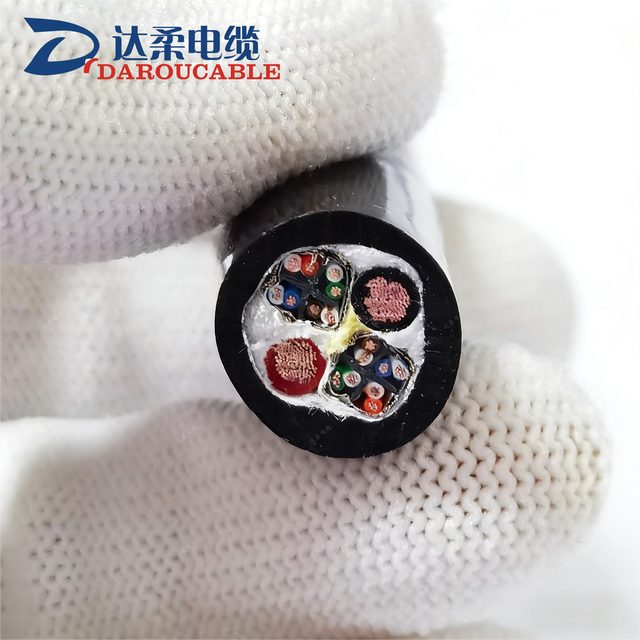

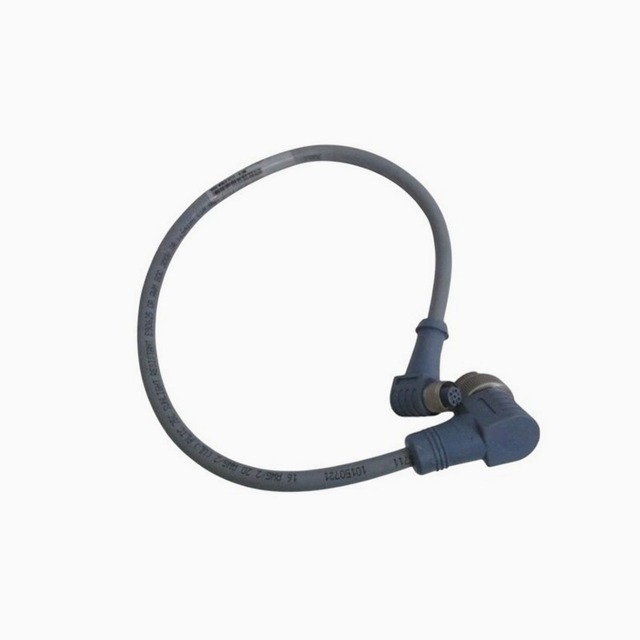

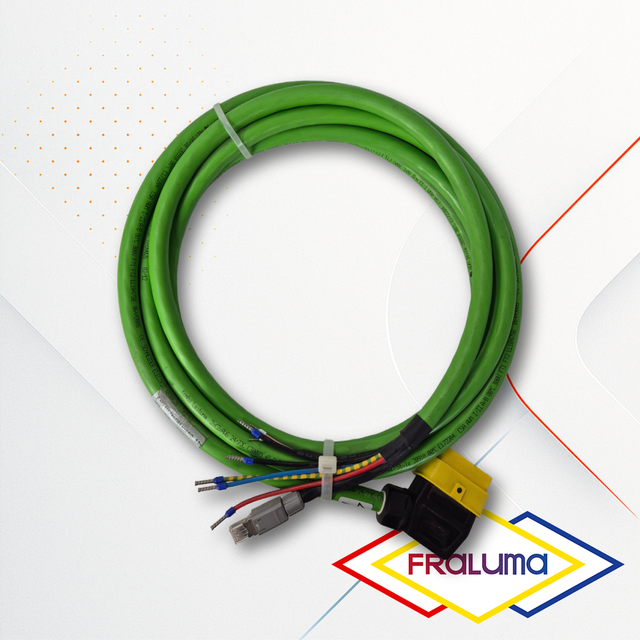

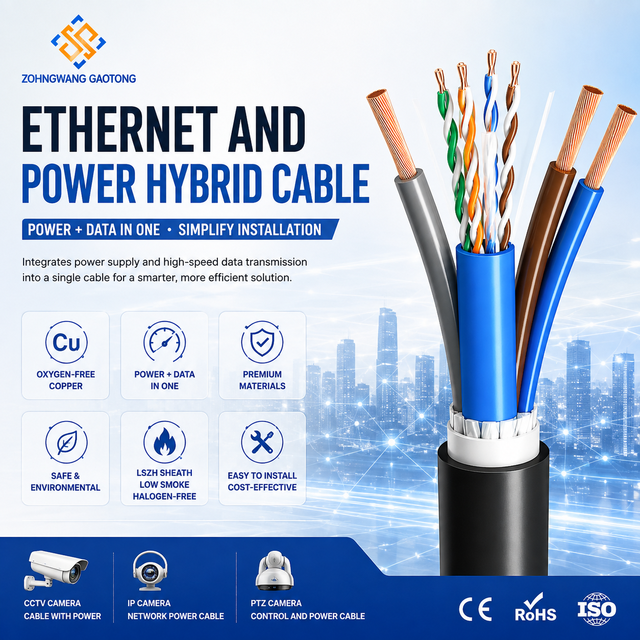

A data cable and a power cable are designed for different primary functions and therefore differ in conductor design, insulation, connectors, signal characteristics, safety requirements and typical use cases. Data cable: typically low voltage (millivolts to 20–48 V in some cases) and low current; heat dissipation is minimal but sensitive electronics can be damaged by overcurrent. Summary Data cables optimize for signal integrity (impedance control, twisting, shielding) and low-voltage communication. Power cables optimize for current capacity, voltage insulation and thermal/mechanical safety. Hybrid standards exist where both functions are required, but those products are specifically engineered to satisfy both sets of requirements. But some do, and using that "charging" cable will get you basically no charging at all, rather than just 1/5th of what you'd likely get with a proper USB cable. If you're connected to a charge-only port, and it's up-to-date, you'll follow the USB Battery Charging Standard.

connector - Cable standard for data and power - Electrical ...

electronics.stackexchange.com

I am looking for a cable standard to control and power a device from its controller. I need to send 5V/10A but also control (not sure yet what protocol it could be but I don't need a high speed, 9600b serial could be enough) over short distance (about 2m.) I looked up PoE but it's really not enough in terms of power. Ideally I don't want something too exotic and hard to find. ... \$\begingroup\$ Digikey has a large selection Link is that not what you are looking for? Of course you could make something bespoke using a multi-pair cable. For that kind of a run however I'd recommend at least 12V, and preferably as high as 20V, to reduce losses. \$\endgroup\$ ... \$\begingroup\$ I didn't consider the loss of power, and 20v is the way to go. The usb solution is elegant but I cant find a breakout board for type 5, all i could find was 5v/1.5A. For POE the breakout board STEVAL-POE001V1 is at 50 euros... Maybe the "1970's" solution would be the simplest in my case. I have a CE certified transformer from 220 to 5v, i m not planning on building that myself... Might there be risks with 5v? Sure i could burn a cable with 10 amps, that's why i m asking this question here... A "standard" way that allows me to pass power and data designed for that specific use case would be imho safer than just hacking something... I know this is not what you want to do but consider using a 12V or 24V supply with a buck converter at the end of the 2 meter cable, your voltage will be much more stable especially if it is not a constant load, which you did not mention. You can also use a second buck converter at the controler end, that leaves you with one power supply. Considering you were thinking of PoE by using buck converters you can up the voltage, and reduce wire size even more. OOPS the calculator link did not stick here it is: https://grealpha.com/resources/dc-load-wiring-calculator/calc/voltage-drop/

Types of Cables Full Guide: Power, Data, Industrial and More

www.b2bcustomcable.com

They’re used to link CD players, TVs, or receivers, offering high-quality audio transmission over short to medium distances. MIDI Cable: Musical Instrument Digital Interface cables don’t carry audio but instead transmit control signals between digital instruments, synthesizers, and computers. Essential in music production, MIDI cables allow devices to communicate performance data like pitch, tempo, and note duration. Different cable types are made with specific materials or designs to suit their intended applications. Depending on the use case, cables can be built to carry high voltage, transmit sensitive data, or handle video and audio signals. These cables are designed to withstand extreme conditions such as heat, chemicals, and mechanical stress. They ensure uninterrupted power, data, and control signal transmission for automated systems and heavy machinery, minimizing downtime and maintaining productivity. These cables come in a variety of types, each serving specific functions in ensuring effective communication between peripherals like monitors, printers, and storage devices. Here is a breakdown of some most common computer cables: HDMI (High-Definition Multimedia Interface) cables are the standard for transmitting both audio and video signals between devices like computers, monitors, and TVs.

2020 National Electrical Code® and data/comm cables | Cabling ...

www.cablinginstall.com

These new marking requirements facilitate matching the ampacities of the cables with the output current of the power supply. The ampacity of the cables, or the current rating in the case of an -LP cable, must be equal to or exceed the current rating of the power supply. Listed 4-pair communications cables are almost always used in place of listed 4-pair Class 2 or Class 3 cables as permitted by the Cable Substitutions Table 725.154(A). 2020 NEC Section 805.179(D) has new provisions that recognize the listing of communications Limited Power (LP) cables for these applications. The installation of Class 2 and Class 3 circuits in communications cables is covered in 2017 NEC Sections 725.139(D)(1) and 800.133(A)(b). “(1) Classified as Communications Circuits. Class 2 and Class 3 circuit conductors shall be permitted in the same cable with communications circuits, in which case the Class 2 and Class 3 circuits shall be classified as communications circuits and shall be installed in accordance with the requirements of Article 800. Applications of listed communications wires and cables, listed cable TV coaxial cables, and listed network-powered communications cables have been removed from Article 805 (formerly Article 800), Article 820, and Article 830 and placed in the new Article 800. Definitions of terms used in multiple articles in Chapter 8 have been moved to the new general article (Article 800). For equipment with a rated current per conductor less than 0.3 amperes, the effective date shall be January 1, 2021. Information Note No. 1: Rated Current for power sources covered in 725.144 is the output current per conductor the power source is designed to deliver to an operational load at normal operating conditions, as declared by the manufacturer. Information Note No. 2: An example of a label is ‘52V @ 0.433A, 56V MAX’ for an IEEE 802.3 compliant Class 8 power source.” · Local area network (LAN) cables are now nearly universally used for PoE applications.

What Is a Cable?

www.computerhope.com

Fiber optic - Network and Internet cable used for high-speed Internet connections. Firewire (IEEE 1394) - Used with digital cameras and external drives. HDMI (High-Definition Multimedia Interface) - Used with monitors, projectors, DVD/Blu-ray players, and other displays. MIDI (Musical Instrument Digital Interface) - Used with musical keyboards and other equipment. Mini plug - Used with headphones, microphones, and speakers. Molex - A power cable used inside your computer. There are two main types of computer cables: a data cable and a power cable. A data cable is a cable that provides communication between devices. For example, the data cable (i.e., DVI, HDMI, or VGA) that connects your monitor to your computer to create a picture on the monitor. The power cord is one example of thousands of other cables in and around computers. Other popular examples of data cables include the CAT5, SATA, and USB cables. A power cable is any cable that powers the device.

Power Cord Types for Data Centers: C13, C14, C19, and C20 Explained ...

andcable.com

Learn more about safety by reading our take on Power Cable Red Flags. Beyond the standard C13, C14, C19, and C20 connectors, there are specialty power cord types designed to solve very specific data center challenges. Best Use Case: Mission-critical equipment where uptime is non-negotiable. Best Use Case: Dual power supply equipment where you want redundancy without doubling cord clutter. Why They Matter: A Y-cable can feed two inlets from one power source, reducing the number of cords in dense racks while maintaining reliability. We’ve discussed Y-cables in detail in our Strategic Y Power Cable Usage article. Best Use Case: Tight spaces where standard straight connectors make routing awkward or block airflow. Louis Chompff – Founder & Managing Director, AnD Cable Products Louis established AnD Cable Products – Intelligently Designed Cable Management in 1989. Prior to this he enjoyed a 20+ year career with a leading global telecommunications company in a variety of senior data management positions.
