PSOP44 to DIP32 Adapter Guide for Automotive ECU Repair

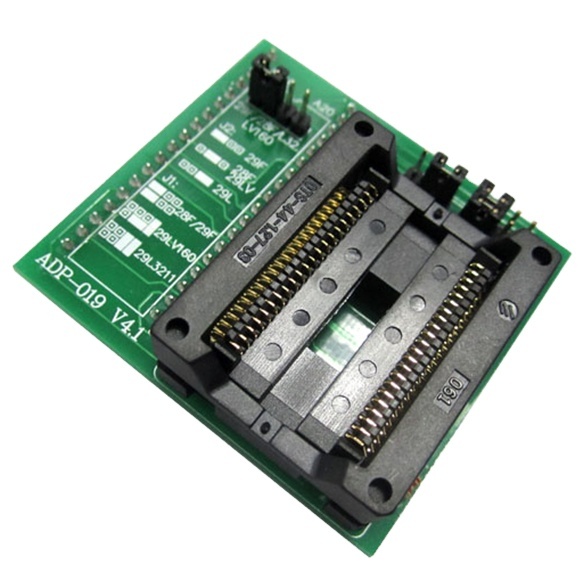

The PSOP44 to DIP32 adapter (most commonly identified as the ADP-019) is a specialized hardware interface used primarily in automotive and industrial sectors for reading and writing Flash memory and EPROMs Gqelectronicsllc Accio. It bridges the 44-pin Plastic Small Outline Package (PSOP) to standard 32-pin Dual In-line Package (DIP) sockets used by universal programmers like the GQ-4X, Willem, and Top2048 Scribd Gqelectronicsllc.

Technical Specifications & Design

* Operating Logic: Operates in 8-bit mode, condensing 44 pins into a 32-pin footprint by multiplexing address lines or omitting unnecessary pins for standard programming Accio Scribd.

* Voltage Support: Compatible with 3.3V to 5.0V devices, with high programming voltage (Vpp) handling up to 12.7V for EPROM writing Gqelectronicsllc Scribd.

* Device Compatibility: Optimized for 29F series Flash (e.g., AM29F200, AM29F400, AM29F800) and Intel 28F series chips Gqelectronicsllc Scribd.

* Design Variations: Includes traditional ZIF socket models for desoldered chips and solder-free clip-on versions (e.g., VH30) for in-circuit programming in automotive ECUs Gqelectronicsllc Accio.

Market Trends & Insights

* Automotive Dominance: Market demand is heavily driven by immobilizer programming and ECU/TCU repairs, where PSOP44 Flash is a legacy standard Accio Gqelectronicsllc.

* Manufacturing Hub: Production is concentrated in Shenzhen, China, with price points ranging from $0.10 for basic PCB versions to $136 for high-end universal programmer sets Alibaba Alibaba.

* Shift to Bundles: Suppliers are increasingly moving toward multi-adapter kits (20+ pieces) to ensure compatibility with modern USB 3.0 programmers that support over 100,000 chip types Alibaba Dhgate.
