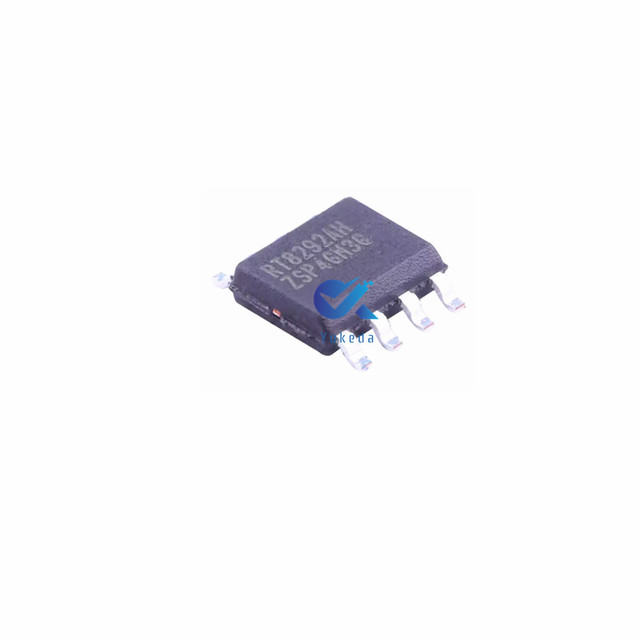

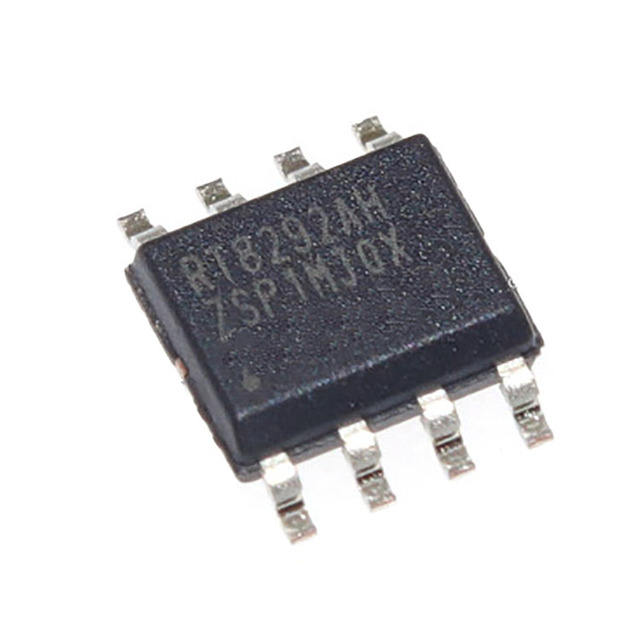

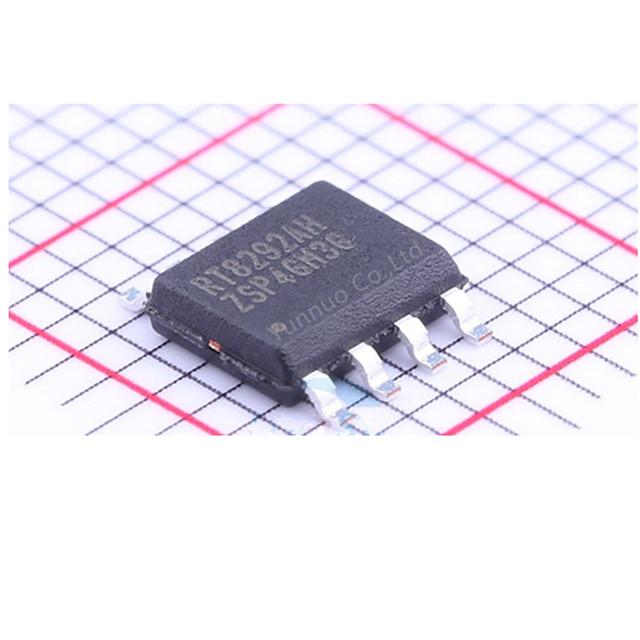

The RT8292AHGSP is a high-efficiency synchronous step-down (buck) DC-DC converter manufactured by Richtek. It is widely utilized in distributed power systems and consumer electronics due to its ability to deliver up to 2A output current from a wide input voltage range of 4.5V to 23V Ic-Components Richtek.

1. Key Product Specifications

* Performance: Fixed switching frequency of 340kHz with up to 95% efficiency Ic-Components.

* Output: Adjustable voltage range from 0.8V to 20V Richtek.

* Protection: Features cycle-by-cycle over-current protection, thermal shutdown (150°C), and a specialized Hiccup Mode for under-voltage protection (unique to the 'H' version) Ic-Components Richtek.

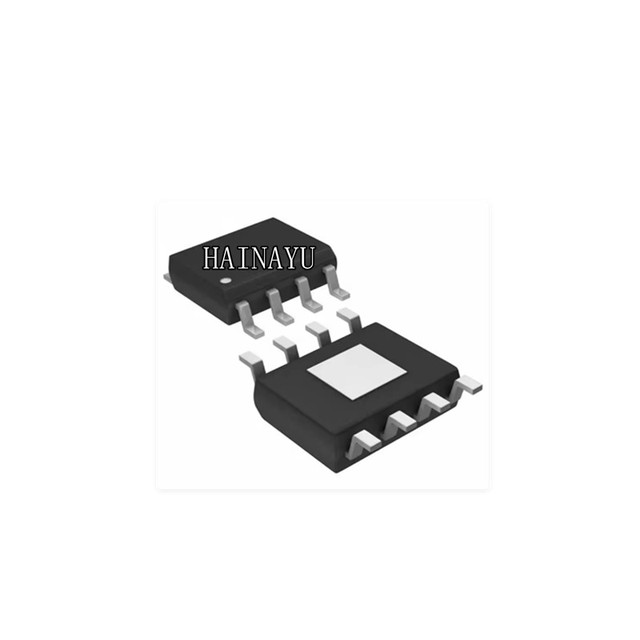

* Design: Housed in an 8-pin SOP package with an exposed pad for enhanced thermal management Ic-Components.

2. Market Trends & Insights

* Supply Chain: The product is currently in stock across major B2B platforms, with the highest concentration of suppliers located in Shenzhen, China .

* Pricing: Wholesale prices generally range from $0.20 to $0.60 per unit, depending on order volume and supplier (MOQs as low as 1–10 pieces) Alibaba Alibaba. Some ultra-low quotes ($0.01-$0.03) exist but typically require high-volume commitments Alibaba.

* Demand Drivers: Growth is driven by the increasing need for advanced IC substrates and high-efficiency power management in automotive, telecommunications, and portable industrial sensors Grandviewresearch Openpr.

3. Application & Implementation

The device is optimized for applications requiring stable voltage regulation from standard 12V or 19V rails, such as set-top boxes, DSL modems, and distributed power bus systems. A typical 3.3V/2A application circuit requires a 10μH inductor and dual 22μF ceramic output capacitors for optimal stability Ic-Components.
