Rx27 4h

Updated October 6, 2026

Overview

Product sourcing insights & recommendations

25 来源

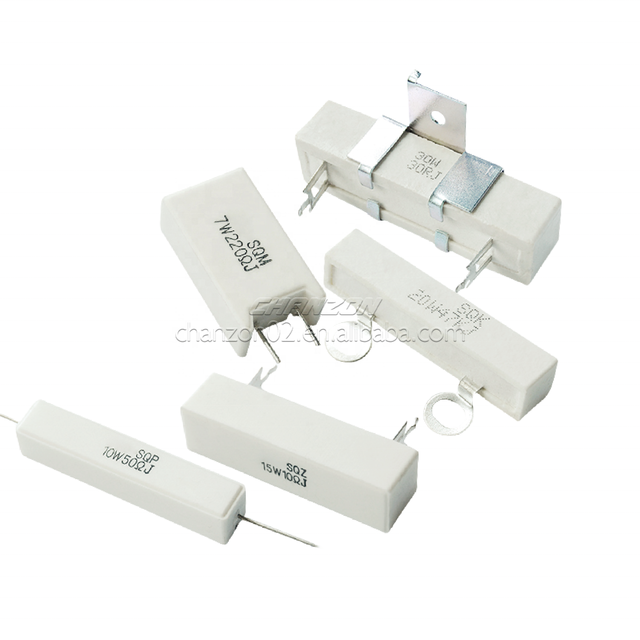

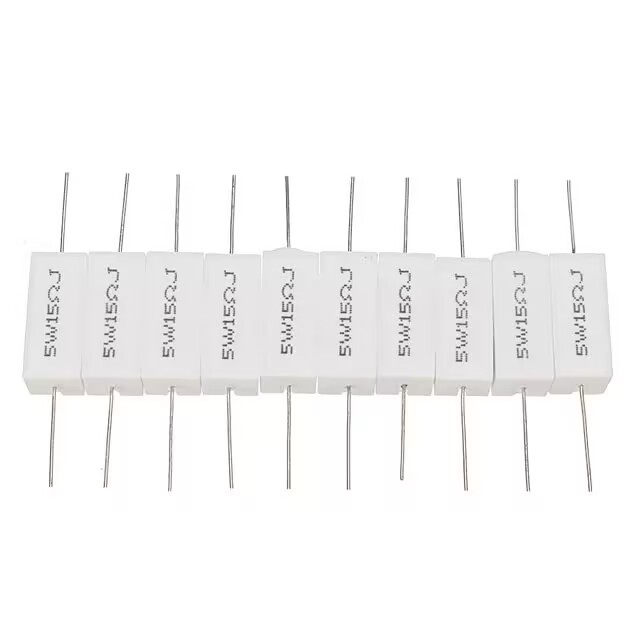

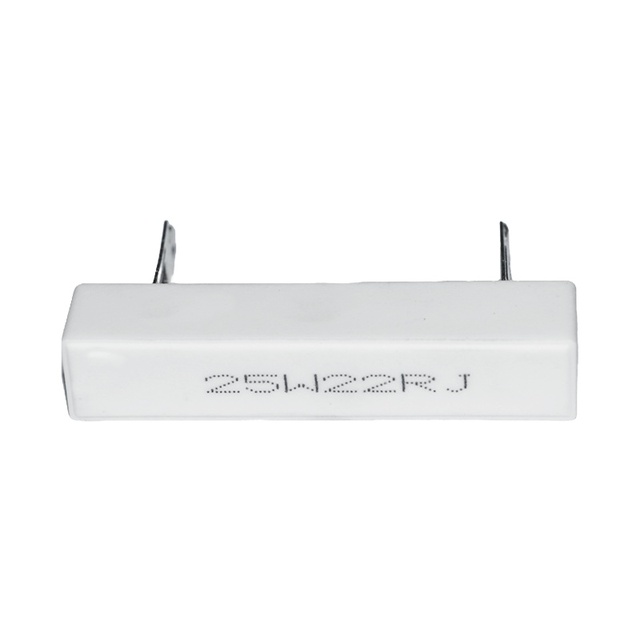

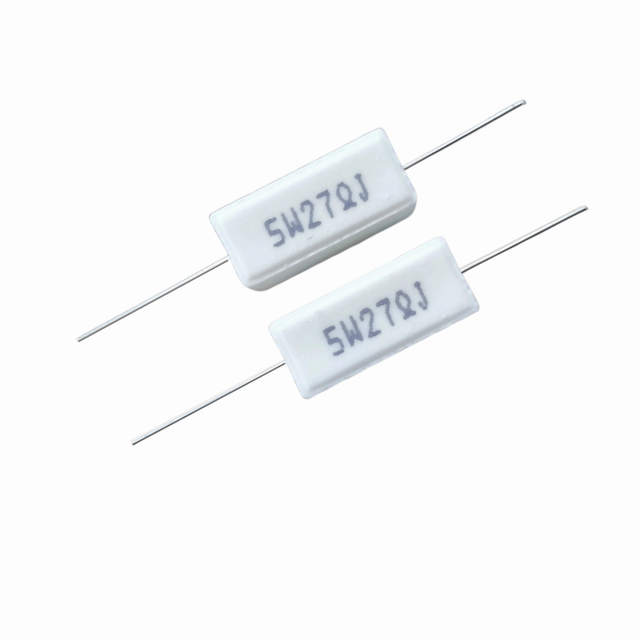

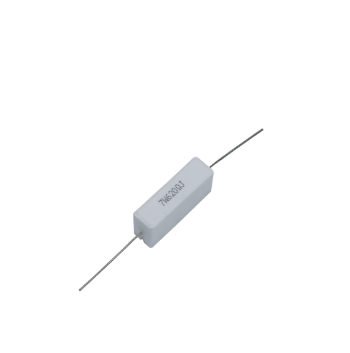

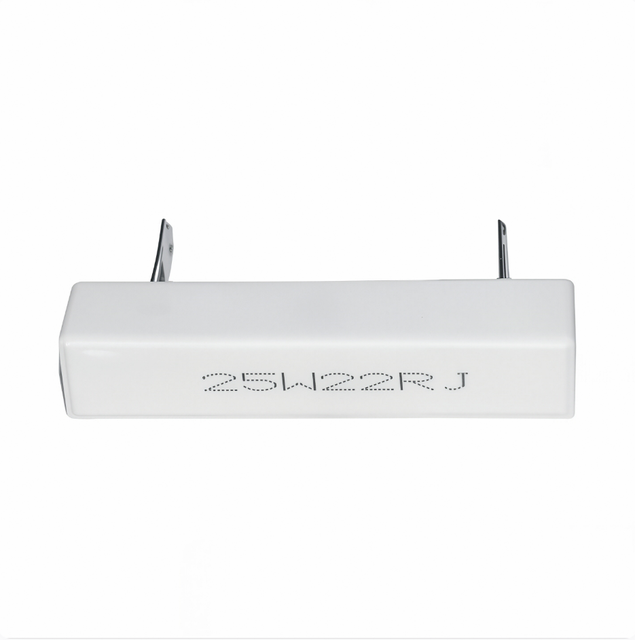

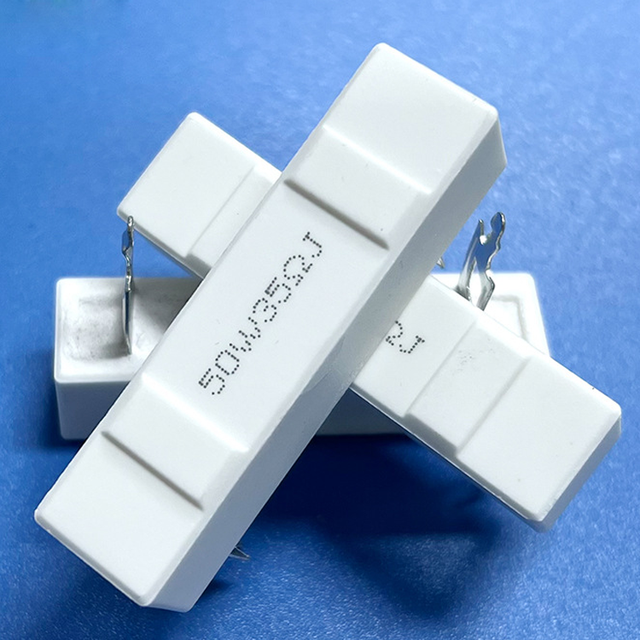

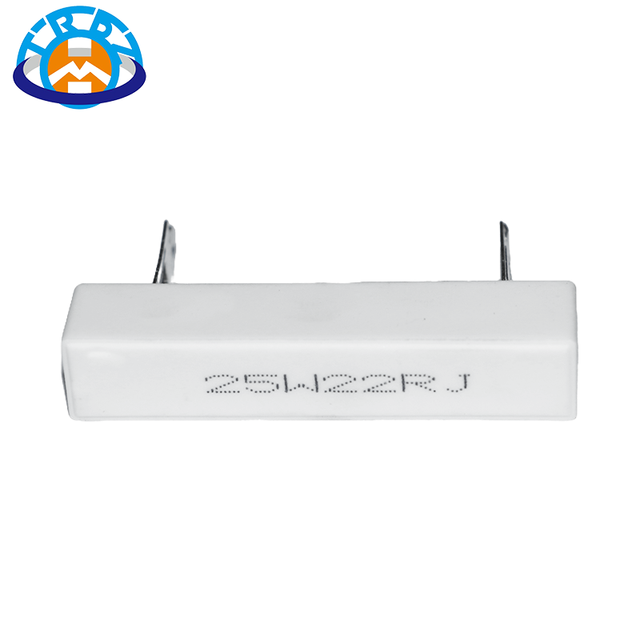

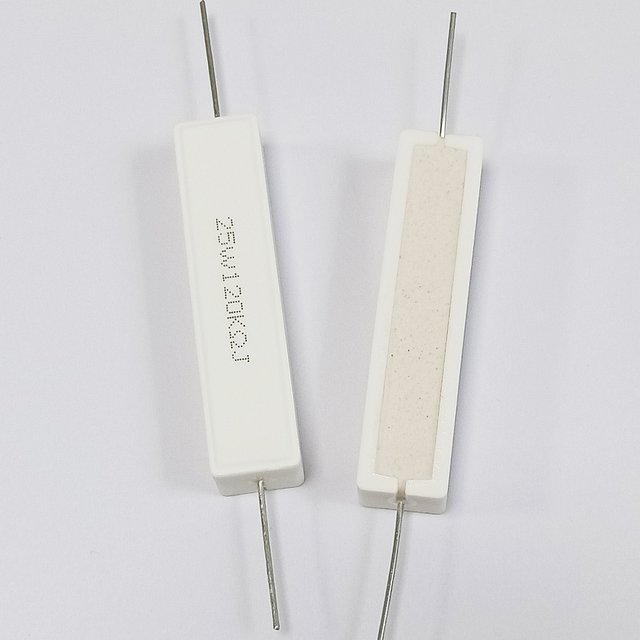

The phrase 'rx27 4h' refers to a specialized type of ceramic encased (cement) wirewound resistor, primarily characterized by its vertical lead configuration (the "4H" variant) Accio Sourceready. These components are foundational in high-power industrial and automotive circuits, known for their extreme heat resistance, fireproof construction, and stability under load Bochen-Resistor Alibaba.

Product Overview

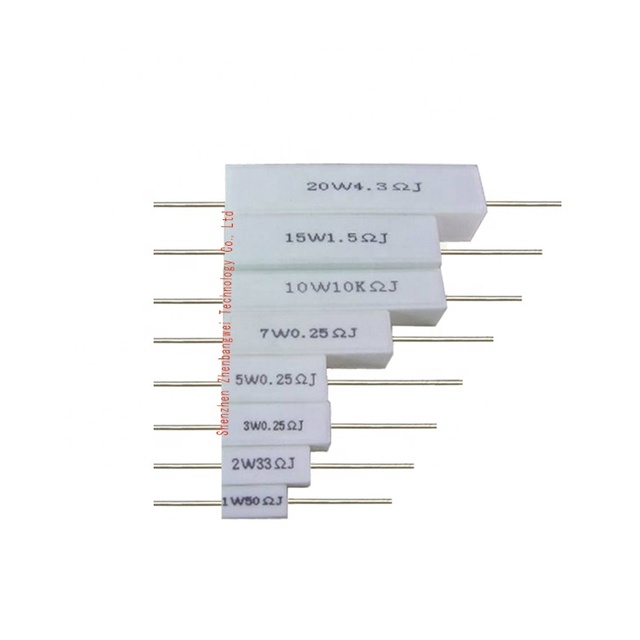

* Key Specifications: Typical power ratings range from 5W to 50W, with specific industrial versions reaching 100W+. Standard resistance spans 0.1Ω to 500Ω with a typical tolerance of ±5% Bochen-Resistor Sourceready.

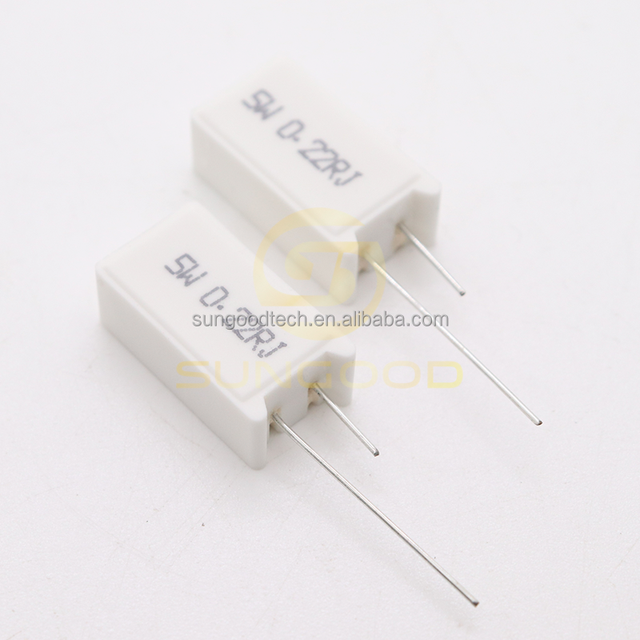

* Core Design: Features a wirewound resistive element sealed within a rectangular ceramic casing using fireproof cement filler. The 4H lead type is designed for specific vertical PCB mounting or high-density board layouts Accio Bochen-Resistor.

* Primary Applications: Crucial for automotive blower motor controls (notably for C4 models), industrial inverters (braking resistors), power supplies, and high-wattage home appliances Accio Sourceready Alibaba.

Market Trends & Insights

* Sector Growth: The global resistor market is maintaining a steady CAGR of ~5.8%, driven heavily by the surge in Electric Vehicle (EV) infrastructure and renewable energy storage systems, which require robust high-power dissipation Accio Bochen-Resistor.

* Supply Chain Dominance: Production is concentrated in specialized Chinese electronic hubs (Shenzhen, Changzhou). Top manufacturers like Changzhou Southern Electronic Element Factory hold critical IATF 16949 automotive certifications and supply global giants like Philips and GE Sourceready Alibaba.

* Miniaturization Shift: While the RX27 vertical ceramic type remains the industrial workhorse, there is a visible market shift toward high-power surface-mount (SMD) "chip resistors" for IoT and compact medical devices Bochen-Resistor Sourceready.

I have identified 30 product listings and 17 specialized manufacturers for RX27-4H resistors. The detailed sourcing and supplier data files are provided below.

Based on the trends for RX27-4H resistors, you can continue with:
