Satellite Tv Multiswitch

The market for Satellite TV Multiswitches is currently undergoing a significant technological shift from traditional "Legacy" systems to Digital Channel Stacking (dCSS) and Digital Satellite Cable Router (dSCR) standards. This transition is primarily driven by the need for simplified installation and support for modern multi-tuner receivers like Sky Q.

📈 Market Trends & Insights

* Rapid Adoption of Single-Cable Technology: The industry is moving toward Unicable II (EN50607) standards, which allow up to 32 user bands to be distributed over a single coaxial cable. This drastically reduces cabling labor and costs in multi-family dwellings. TelevesJohansson

* Wideband Compatibility: New multiswitch designs are increasingly compatible with Wideband LNBs. This allows two full satellite positions to be distributed using only two trunk cables instead of the traditional four, doubling the efficiency of the vertical distribution network. Televes

* Integration with Fiber (FTTH): To overcome the distance limitations of coaxial cable, manufacturers are combining dCSS technology with optical distribution, allowing satellite signals to be transmitted over kilometers before being converted back to RF for the user. TelevesJohansson

* Static Mode for Hospitality: A rising trend in hotels and high-density buildings is the use of Static Mode, where specific satellite transponders are mapped to fixed frequencies, serving an unlimited number of TV points without requiring specialized receivers. Johansson

🛠️ Product Highlights

Current market offerings reflect these trends, focusing on high user-band capacity and cascadable designs for large-scale systems.

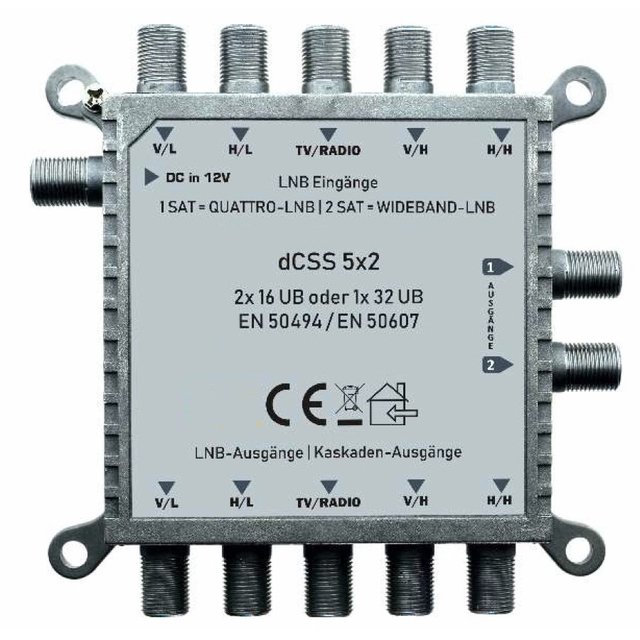

* dCSS/dSCR Switches: High-end models now support up to 32 user bands and are compliant with both EN50494 and EN50607 standards, ensuring compatibility with both legacy and modern 4k PVRs.

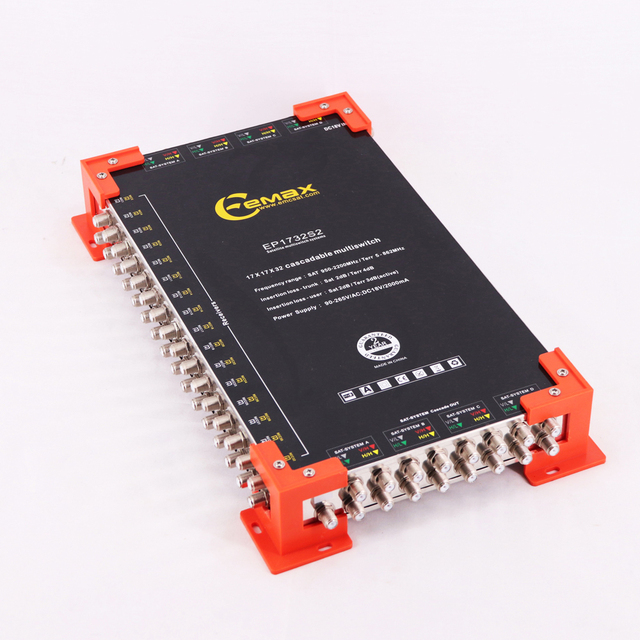

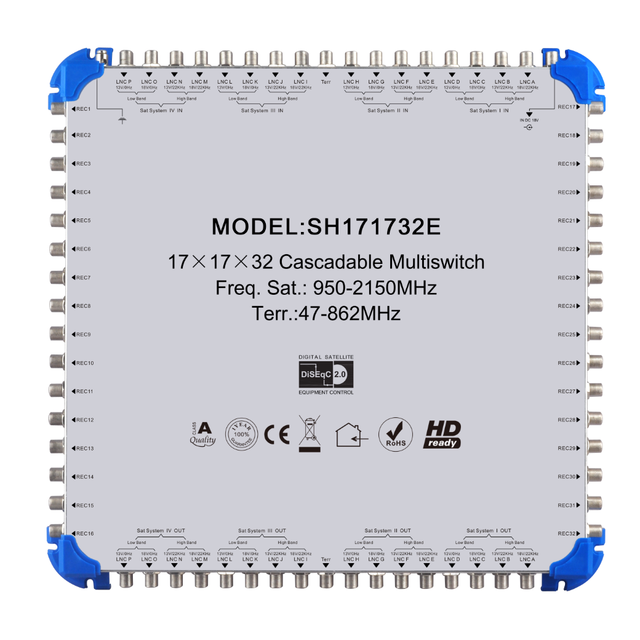

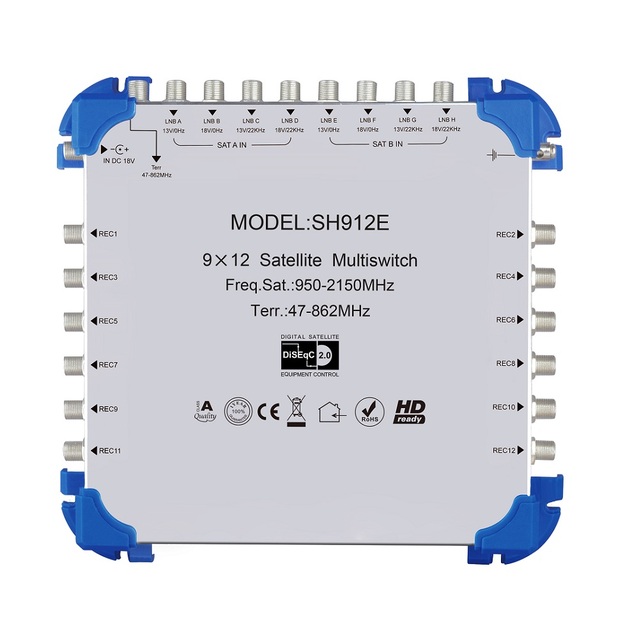

* Cascadable Solutions: For apartment blocks, cascadable 5-input and 9-input multiswitches are the standard, allowing multiple units to be linked to serve hundreds of subscribers from a single dish.

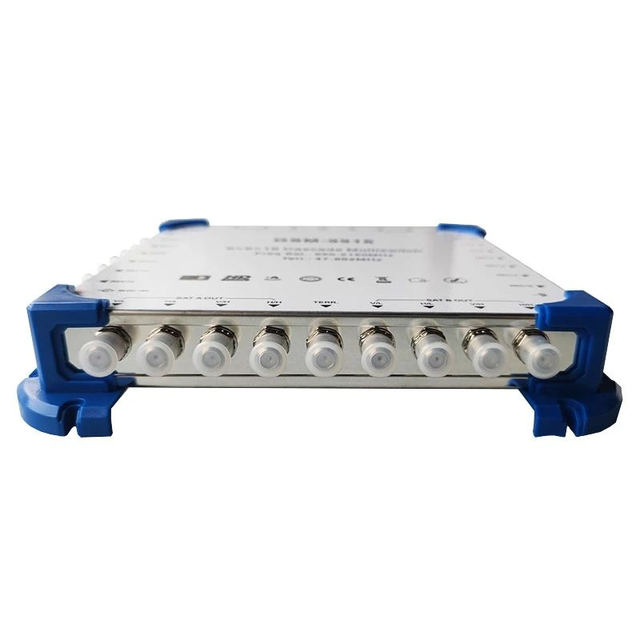

* Wideband Support: Modern units often feature a "Wideband" toggle, allowing the switch to process signals from Wideband LNBs (290–2340 MHz) rather than just standard Quattro LNBs.
