Standard 42u Rack Dimensions

Updated October 6, 2026

Overview

Product sourcing insights & recommendations

26 来源

The 'Standard 42U Rack' refers to a standardized enclosure that follows the EIA-310-D industry specification, primarily defined by a 19-inch (482.6 mm) internal mounting width. As of 2026, the market is shifting toward deeper and wider variants to accommodate high-density AI infrastructure and liquid cooling systems. Kdstelectrical 42U

Technical Dimension Standards

A standard 42U rack is optimized for vertical space efficiency while remaining compatible with typical facility infrastructure like elevators and ceiling heights. Kdstelectrical Payapress

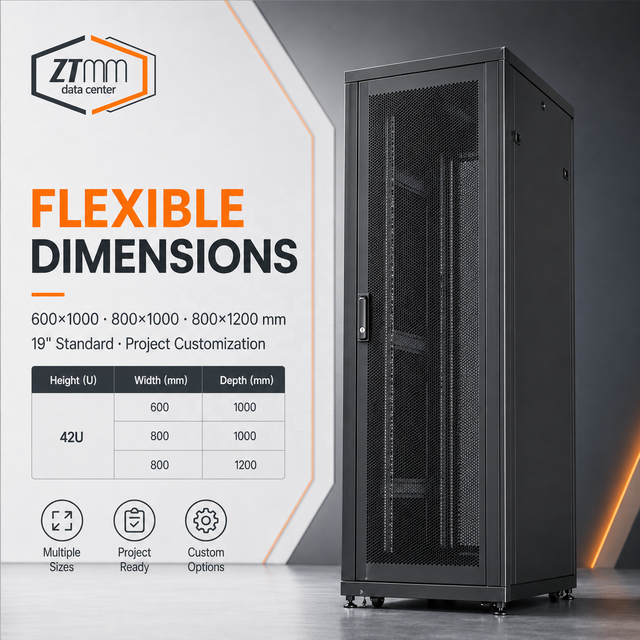

Dimension	Standard Specification	2026 High-Density/AI Variant
Internal Width	19" (482.6 mm)	19" (Standardized)
Usable Height	73.5" (1,867 mm)	73.5" (Standardized)
External Width	23.6" (600 mm)	29.5"–31.5" (750–800 mm)
External Height	~78.7" (2,000 mm)	~80.9" (2,055 mm with casters)
External Depth	39.4" (1,000 mm)	47.2" (1,200 mm)

Market Trends & Insights (2024–2026)

The global data center rack market is projected to grow at a CAGR of 7.5%–10% through 2026, driven by the following shifts: Kdstelectrical

* AI-Driven Depth Expansion: The 1,200 mm depth is becoming the new enterprise baseline to accommodate deep GPU chassis and massive cable bundles. Weunionfiber

* Liquid Cooling Readiness: Racks are increasingly "factory-ready" for Rear-Door Heat Exchangers (RDHx) and direct-to-chip cooling loops to manage power densities exceeding 20 kW per rack. Kdstelectrical Weunionfiber

* Segment Shift: While 42U holds ~65% market share, the 48U and 52U segments are growing rapidly (9%–12% CAGR in APAC) as hyperscalers prioritize floor space ROI. Kdstelectrical

* Smart Security: Integrated IoT sensors for front/rear temperature differentials and biometric physical access are now standard requirements for colocation deployments. Weunionfiber

Sourcing Landscape

Most 42U racks are manufactured in North America and Asia (China/India), with pricing varying significantly based on load capacity and cooling features. Kdstelectrical Gcabling

* Standard Networking Racks: Typically priced between $120–$300, focusing on 600mm width and tempered glass or mesh doors.

* AI/High-Density Cabinets: Priced from $1,000–$6,000+, these include advanced thermal isolation, high perforation rates (75%+), and integrated CDU (Cooling Distribution Unit) infrastructure.

Would you like to compare the top 5 manufacturers for liquid-cooled 42U racks, or should I generate an inquiry email for a specific supplier?
