Standard Data Center Rack Size

Updated July 3, 2026

Overview

Product sourcing insights & recommendations

26 来源

The "standard data center rack size" is primarily anchored by the 19-inch (482.6 mm) internal mounting width, a universal standard established by the EIA-310 specification Andcable Enconnex. While the interior is standard, external dimensions and rack density are shifting rapidly due to the surge in AI and high-performance computing (HPC) Vertiv 1-Act.

Standard Dimensions & Specifications

Modern data centers typically deploy two main heights to balance equipment density and facility constraints:

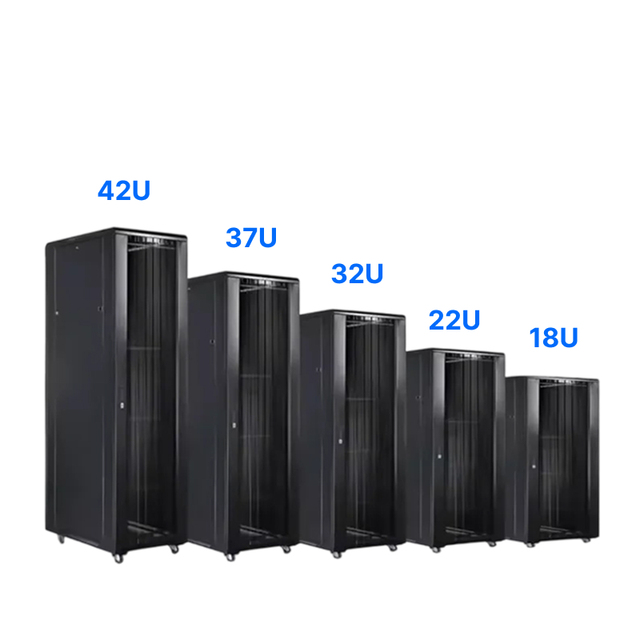

* 42U (Standard): Standing at approximately 73.6 inches (1867 mm), this is the industry baseline for its ease of transport through standard doorways Optcore Racksolutions.

* 48U (High Density): Standing at 84 inches (2134 mm), these "7-foot racks" are increasingly favored in hyperscale environments to maximize vertical floor space Optcore Datacenterknowledge.

* Width & Depth: While interior width is fixed at 19 inches, exterior widths are widening to 30–31.5 inches (800 mm) to allow for heavy cabling and side-airflow Lianjer Enconnex. Depths are expanding from the traditional 36 inches to 42–48 inches (1200 mm) to accommodate deeper AI servers and rear-door cooling systems Lianjer Enconnex.

Market Trends & Industry Insights (2024–2026)

The market is undergoing a structural shift driven by AI power demands, with the global data center rack market projected to grow at a 9.10% CAGR, reaching $14.55 billion by 2034 Fortunebusinessinsights.

* Skyrocketing Rack Density: Average rack density has jumped from ~8kW in 2020 to 12kW in 2024 Enconnex. AI-specific deployments are now regularly pushing racks toward 100kW per cabinet, making traditional air cooling obsolete Vertiv Ashrae.

* Liquid Cooling Dominance: Transitioning from niche to necessity, liquid cooling is up to 3,000 times more efficient than air Vertiv. Modern racks are being designed with integrated Coolant Distribution Units (CDUs) and Direct-to-Chip cold plate loops Vertiv Digitalrealty.

* Structural Reinforcement: The increased weight of AI GPUs and liquid cooling hardware requires racks with higher static load ratings, often exceeding 3,000 lbs (1,360 kg) per cabinet Fortunebusinessinsights Enerconpower.

Product Availability

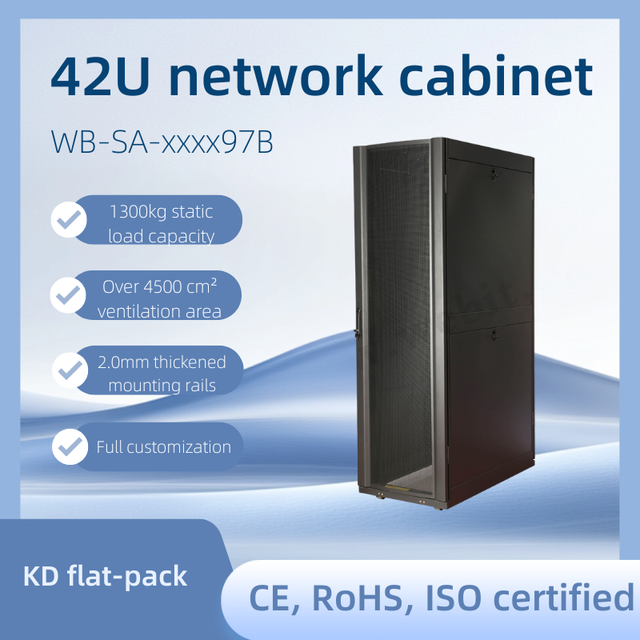

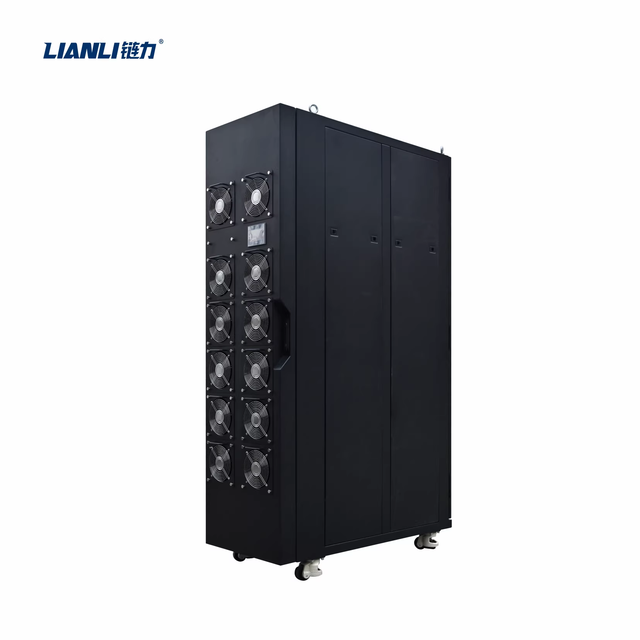

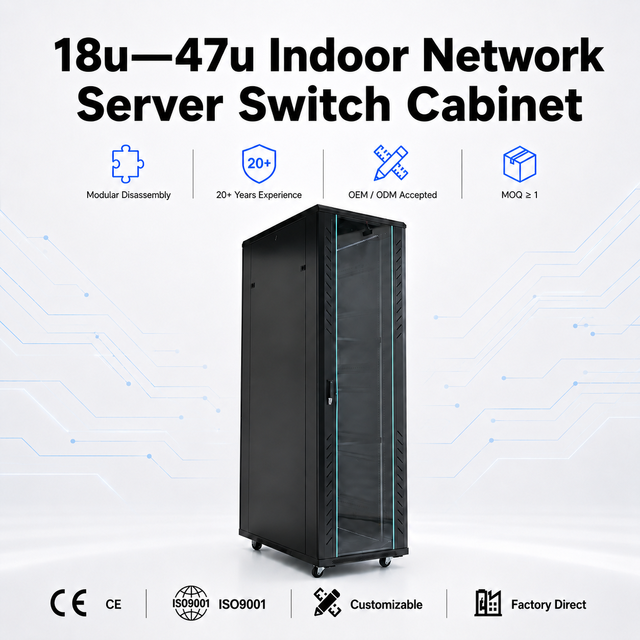

Standard 42U cabinets are widely available starting around $75–$110 per unit for basic steel enclosures, while AI-ready liquid cooling modular cabinets can range from $300 to over $13,000 depending on the integrated thermal management systems Alibaba Alibaba.
