TDA7560 Amplifier Circuit Design and Sourcing Guide

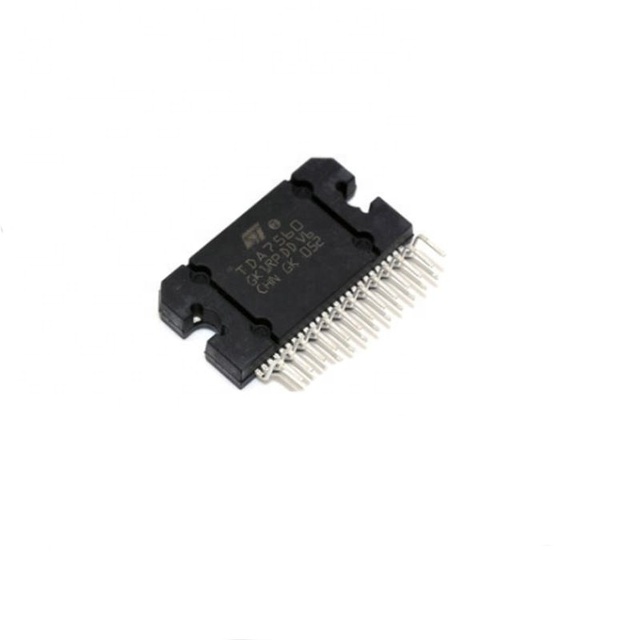

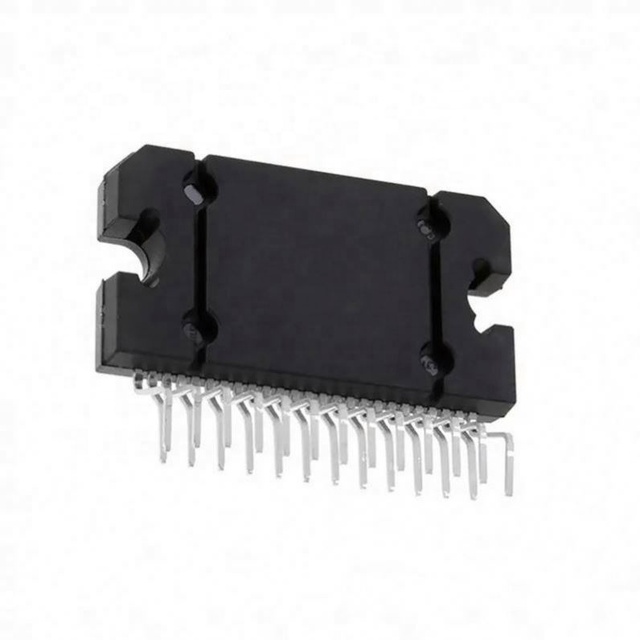

The TDA7560 is a Class-AB quad bridge car radio amplifier utilizing BCD (Bipolar/CMOS/DMOS) technology, delivering up to 4 x 51W of power Jakelectronics St. It is a mature, high-fidelity solution widely used for automotive audio and DIY speaker projects due to its stability with 2Ω loads and integrated protection features against short circuits and thermal issues Allelcoelec Aliexpress.

Market Trends & Insights (2026 Outlook)

* Market Valuation: The global power amplifier market is projected to reach USD 30.15 billion by 2026, with a CAGR of 6.91% Mordorintelligence.

* Efficiency Transition: There is a significant market shift from Class-AB amplifiers like the TDA7560 toward Class-D designs Hifivision Futureaudiophile. This is driven by the need for >90% efficiency in electric vehicles (EVs) and compliance with strict EU Eco-Design power consumption regulations Intelmarketresearch Allelcoelec.

* Technological Disruptors: Legacy Silicon components are increasingly being displaced by Gallium Nitride (GaN) and Silicon Carbide (SiC) technologies, which offer superior thermal performance and higher power density Mordorintelligence.

* Regional Hubs: Asia-Pacific (primarily China and South Korea) remains the dominant manufacturing and demand hub, holding over 70% of the market share in the consumer audio segment Mordorintelligence Intelmarketresearch.

Application Guidelines

* Input Stability: Use 0.1µF capacitors for the input stage to achieve a low-frequency cutoff of 16 Hz, ensuring deep bass response while filtering DC noise Allelcoelec Edn.

* Pop Noise Suppression: A Supply Voltage Rejection (SVR) capacitor of at least 10µF is mandatory to prevent audible "pops" during turn-on/off sequences Allelcoelec.

* Thermal Management: While the chip has a thermal shutdown at 150°C, it begins to throttle performance at 120°C. High-quality heatsinking and a regulated power supply are recommended to maximize lifespan Ariat-Tech Aliexpress.

Detailed sourcing data for TDA7560 ICs and modules is available in the deliverable below.
