TLP701-TP-F photocoupler sourcing guide

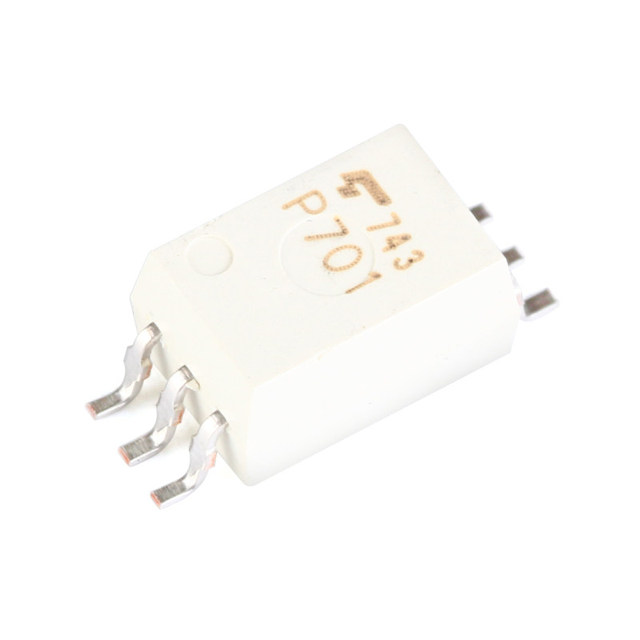

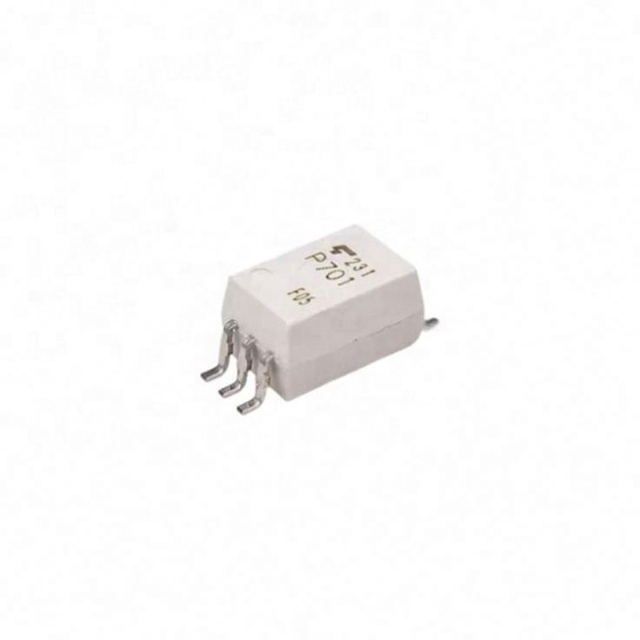

The phrase 'tlp701 tp f' refers to a specific configuration of the TLP701 photocoupler manufactured by Toshiba Semiconductor & Storage. It is a gate driver designed for isolated driving of IGBTs and power MOSFETs in energy-efficient power conversion systems Digikey Semicon-Storage.

Product Insights

Key Specifications: Features a peak output current of ±0.6 A, isolation voltage of 5000 Vrms, and high common-mode transient immunity of ±10 kV/µs Semicon-Storage Mouser.
Applications: Primarily found in induction cooktops, industrial inverters, photovoltaic (PV) inverters, and air conditioners for motor control and power management Semicon-Storage Digikey.
Part Number Breakdown:
TLP701: Base photocoupler model.

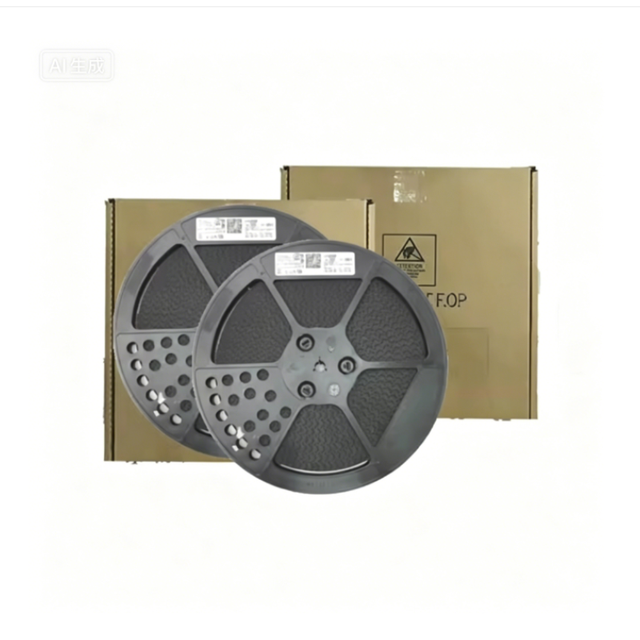

TP: Tape and Reel packaging for automated assembly.
F: Lead-free (RoHS compliant) status Digikey Mouser.

Market Trends & 2026 Outlook

Lifecycle Status: The TLP701 is currently classified as Obsolete or Not Recommended for New Design (NRND) by major distributors Digikey Mouser.
Successor Products: Toshiba has introduced the TLP5701 and TLP5751 series as modernized replacements. These offer similar electrical performance in smaller, more efficient SO6L packages to meet the trend of PCB miniaturization Semicon-Storage.
Price & Availability: Despite its obsolete status, stock is still available through specialized B2B suppliers. Current prices range from approximately $0.41 to $0.99 per unit depending on volume Ic-Components Lcsc. In 2026, sourcing will likely rely on secondary market inventories or transition to newer alternatives.
