How to Choose the Right Tone Control Board for HiFi Projects

The market for tone control boards is experiencing a significant resurgence driven by DIY audio hobbyists, retro-audio enthusiasts, and the integration of affordable, high-fidelity components like the NE5532 op-amp Alibaba.

Market Trends & Consumer Insights

* Utility Over "Purity": While high-end audio previously shunned tone controls to maintain signal purity, modern users are re-adopting them to compensate for streaming compression, room acoustics, and varied recording qualities Audiosciencereview.

* Miniaturization & IoT: Trends for 2026 point toward continued miniaturization and the expansion of IoT-enabled audio devices, where compact tone boards serve as modular pre-amplifiers Uk.

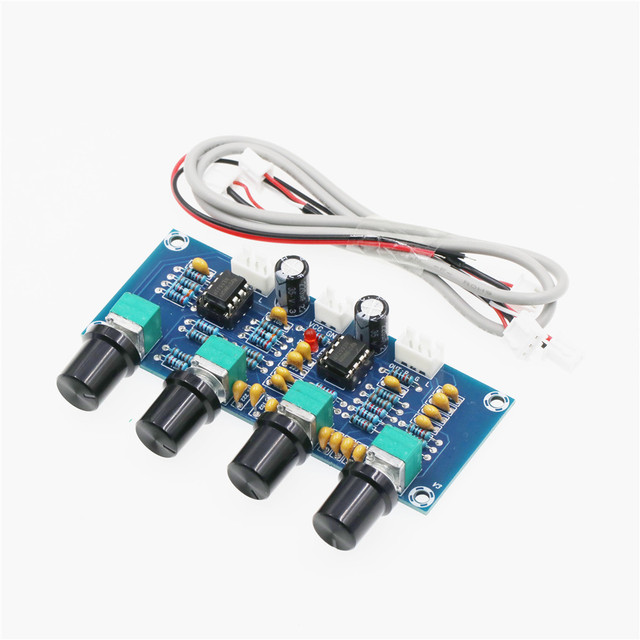

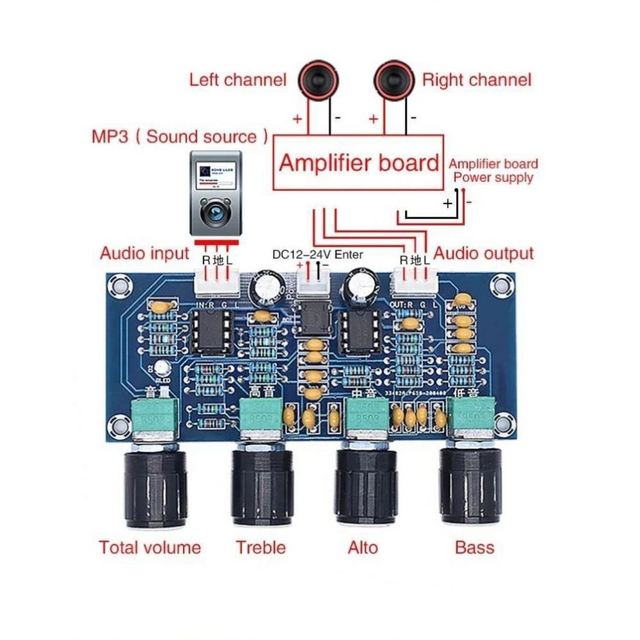

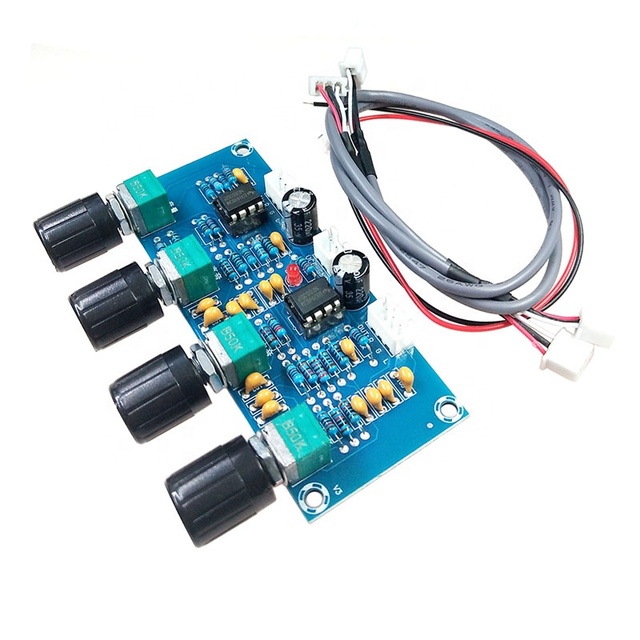

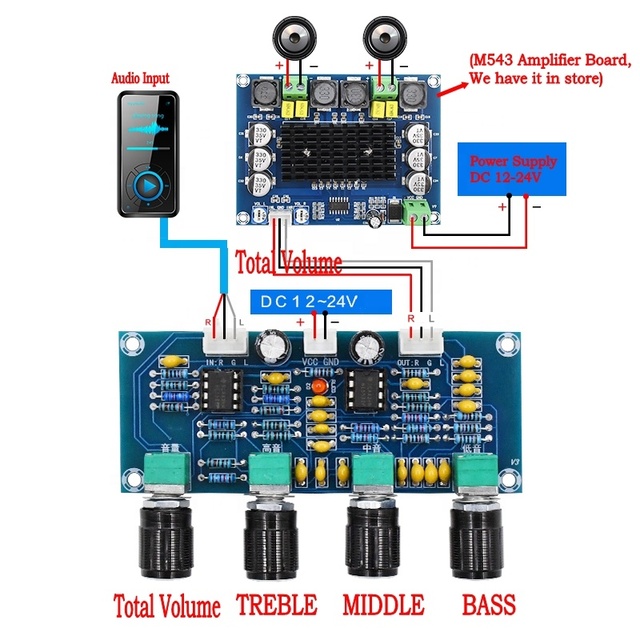

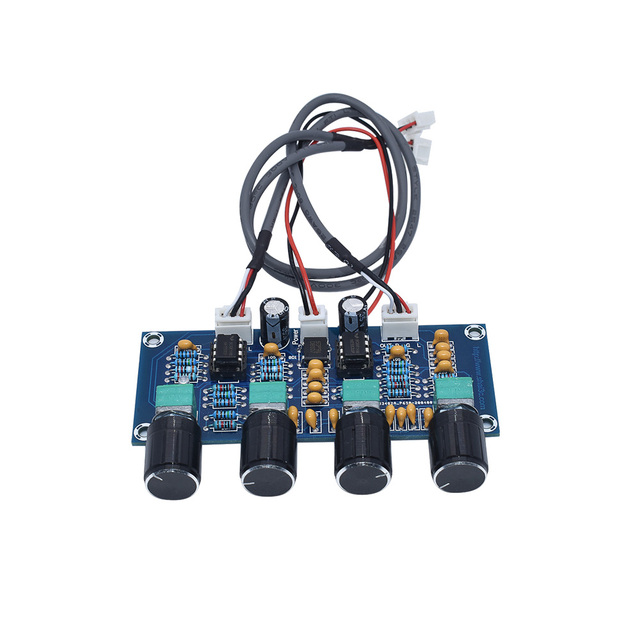

* Resurgence of Analog-First Builds: A growing DIY community is utilizing standardized boards like the XH-M802 and XH-A901 for custom tube amplifiers and Raspberry Pi audio stations Alibaba.

Technical Landscape

* Active vs. Passive:

* Passive Boards (e.g., XH-M802): Offer zero electronic noise and no power requirement but suffer from "insertion loss" (volume drop) Alibaba.

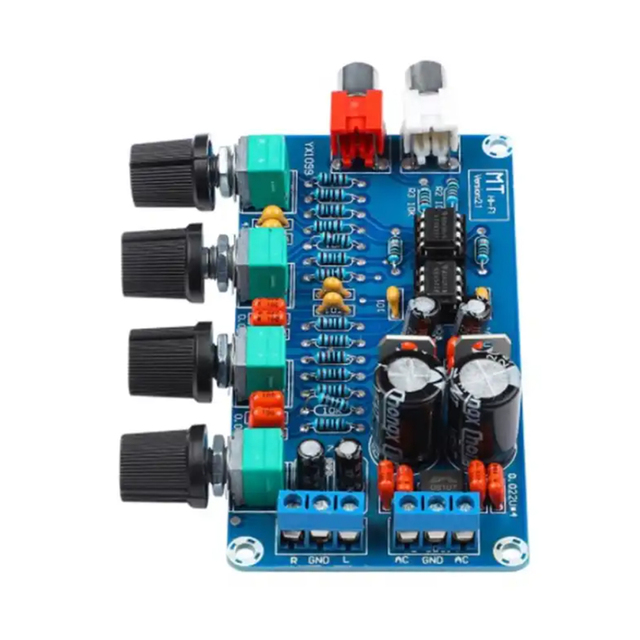

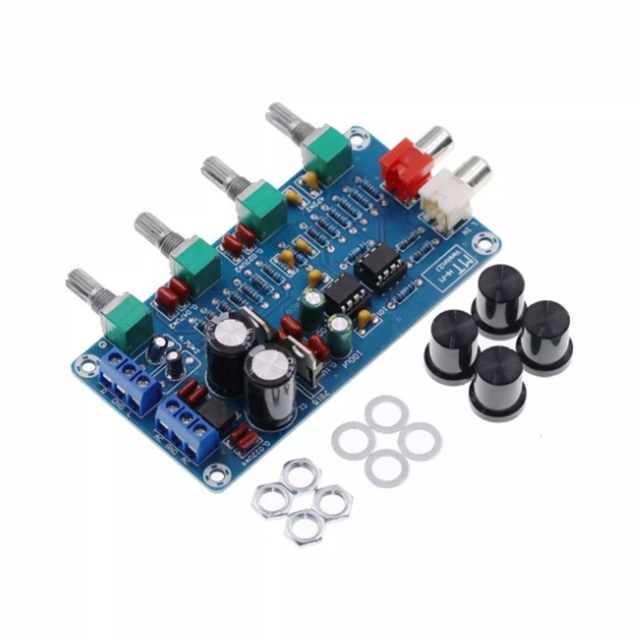

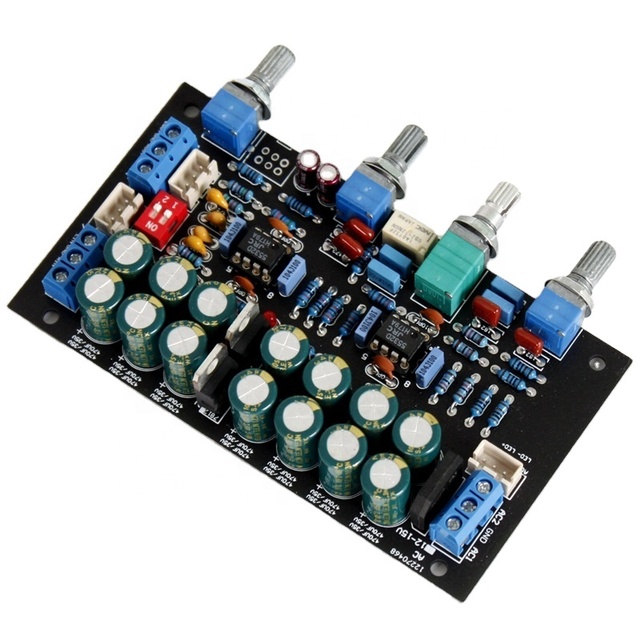

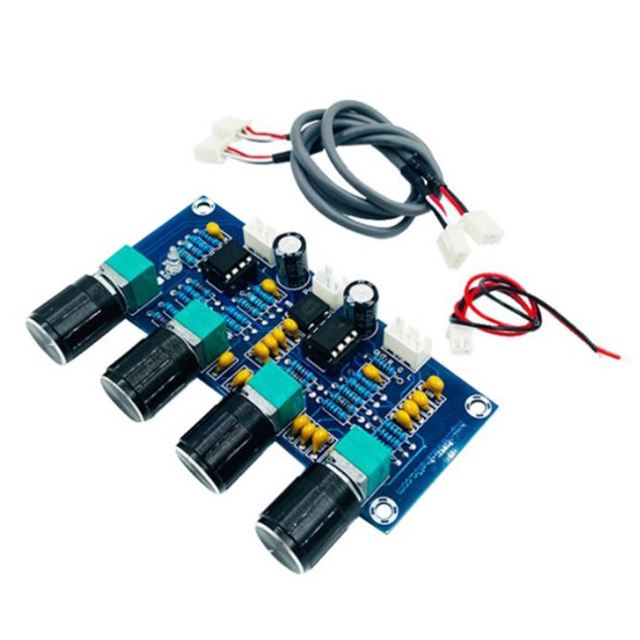

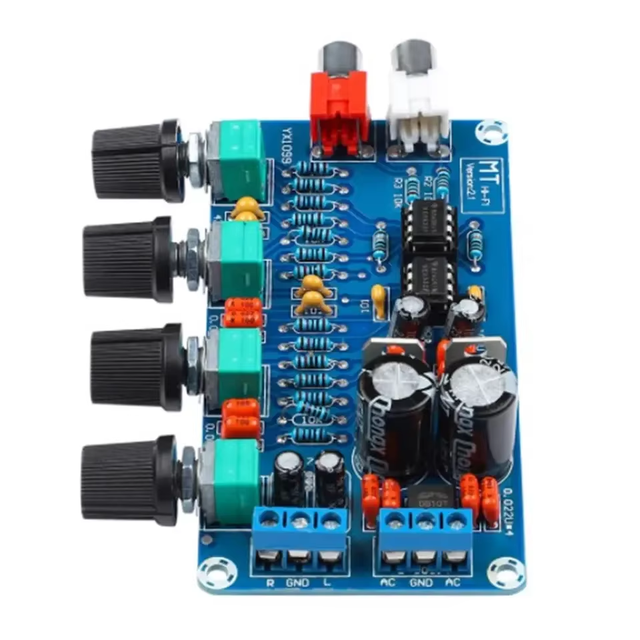

* Active Boards (e.g., NE5532): Utilize the Baxandall circuitry for independent shelving of bass and treble with ±12V to ±15V power supplies for maximum headroom Alibaba.

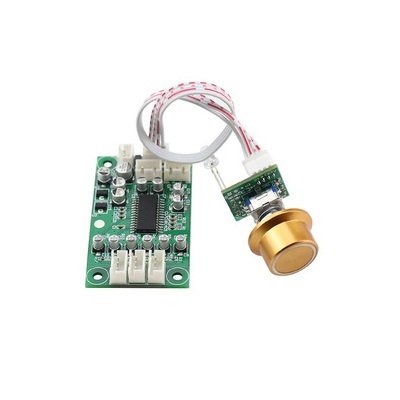

* Chip Standards: The NE5532 remains the gold standard for budget HiFi due to its low noise floor and high slew rate, while the LM1036 is preferred for simpler all-in-one DC-controlled volume and tone implementations Alibaba.

Consumer Pain Points

* Documentation Gaps: A primary complaint among DIYers is the lack of pinout diagrams or documentation, often requiring manual reverse-engineering of the boards Alibaba.

* Hardware Issues: Users frequently report "scratchy" low-quality potentiometers and 50/60 Hz humming when boards are mounted too close to power transformers Alibaba.

* Signal Interaction: Poorly designed boards often suffer from "control interaction," where adjusting treble unintentionally shifts the bass response Alibaba.
