Universal Lnb Frequency

A Universal LNB (Low-Noise Block) is the primary hardware used in satellite television to receive signals across the full Ku-band spectrum (10.7–12.75 GHz). AlibabaBoweisat It utilizes a dual-oscillator design and specific switching logic to provide a wide range of channel compatibility.

Technical Definition & Frequency Specs

The "Universal" designation comes from its dual Local Oscillator (LO) frequencies, which allow it to capture both low and high satellite bands: CesboWikipedia

* Low Band (10.7–11.7 GHz): Uses a 9.75 GHz LO frequency. Alibaba

* High Band (11.7–12.75 GHz): Uses a 10.6 GHz LO frequency. Alibaba

* Switching Logic: A 22 kHz tone from the satellite receiver toggles between these bands (0 kHz for Low, 22 kHz for High). Alibaba

* IF Output: Converts these high-frequency signals to a manageable 950–2150 MHz range for transmission via coaxial cable. AlibabaAlibaba

Market Trends & Insights

The LNB market is projected to reach $4.21 billion by 2034, growing at a CAGR of 5.8%. Dataintelo Key trends driving the industry include:

* Regional Dominance: Universal LNBs (9.75/10.6 GHz) are the standard across Europe, Asia, and Africa. Alibaba In contrast, North America primarily uses "Standard" linear LNBs (10.75 GHz), leading to common configuration errors for global satellite users. Alibaba

* Ultra-Low Noise Figure: Modern competition is focused on lowering the Noise Figure (NF). High-performance LNBs now offer 0.1dB to 0.3dB, significantly improving signal stability during heavy rain or "rain fade" conditions. AlibabaAlibaba

* 4K & UHD Compatibility: Market demand is shifting toward 4K Ready LNBs that offer higher gain and stability for high-bitrate Ultra-HD broadcasts. AmazonAlibaba

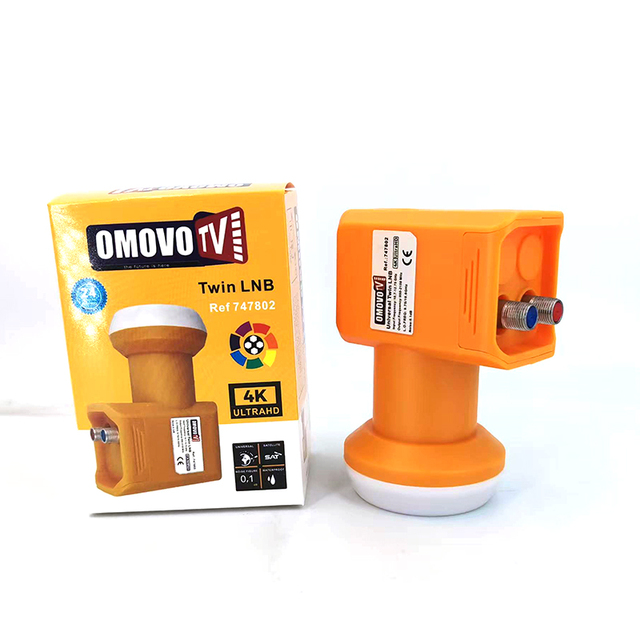

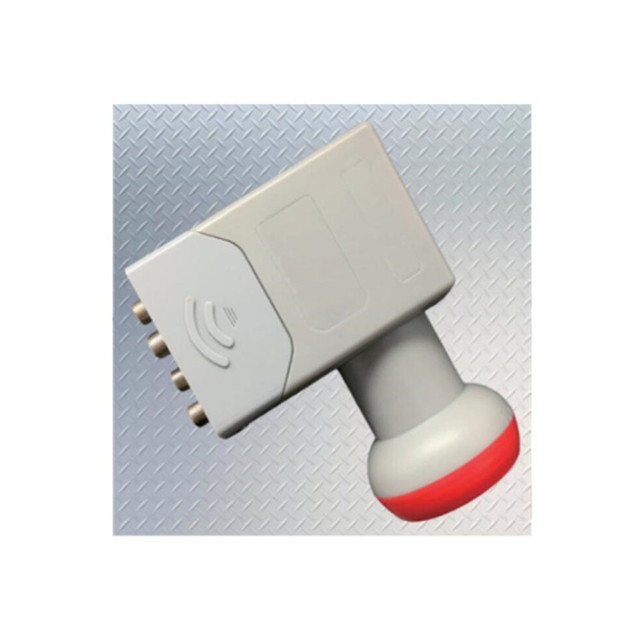

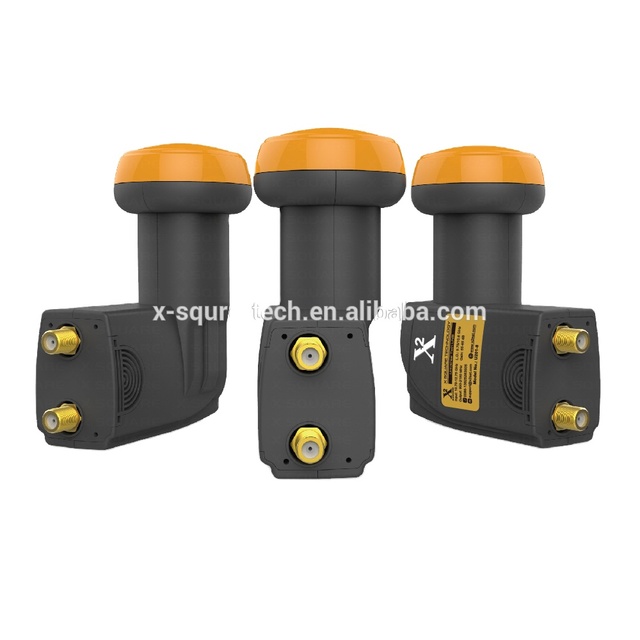

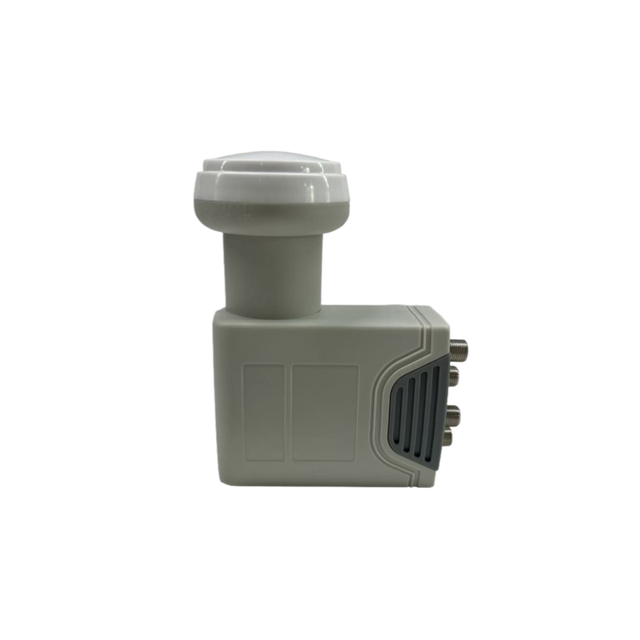

* Multi-Room Distribution: There is a strong trend toward Twin, Quad, and Octo LNBs, allowing multiple independent receivers to connect to a single dish without signal loss. AlibabaAlibaba
