The USB 3.1 hub PCB market is currently undergoing a massive transformation, driven by the shift from USB-A to universal USB-C connectivity and a projected global market surge to $139.9 billion by 2035 (15.4% CAGR) Futuremarketinsights.

Technical Product Trends

* Layer Stackup & Impedance: For USB 3.1 Gen 1 (5Gbps), a 4-layer stack is the industry standard to maintain signal integrity Alibaba. However, for Gen 2 (10Gbps) or multi-function designs (HDMI + SD + PD), a 6-layer stack is increasingly preferred to manage crosstalk and EMI AlibabaEevblog. Differential pairs must strictly maintain 90 Ω ±10% impedance Alibaba.

* Thermal Management: High-speed ICs like the VL817 (found in top-selling modules) dissipate significant heat, requiring thermal vias and finishes like ENIG for reliable long-term performance AlibabaAlibaba.

* Power Delivery (PD): Integration of USB PD 3.1 (supporting up to 240W) is a key trend, though most commercial PCBA modules currently target 60W–100W for consumer docking stations FuturemarketinsightsAlibaba.

Market Insights

* Regional Dominance: China leads with the fastest expansion (20.8% CAGR) due to its mature PCBA manufacturing ecosystem, followed by India (19.3% CAGR) Futuremarketinsights.

* Consumer Shift: Consumer electronics account for 43% of the market, with Type-C receptacles now holding a 58% share as laptops retire legacy ports Futuremarketinsights.

* Next-Gen Evolution: Market leaders are rapidly shifting from standalone hub chips to SoC-integrated solutions (Hub + PD + Logic) to reduce costs and PCB footprint Futuremarketinsights.

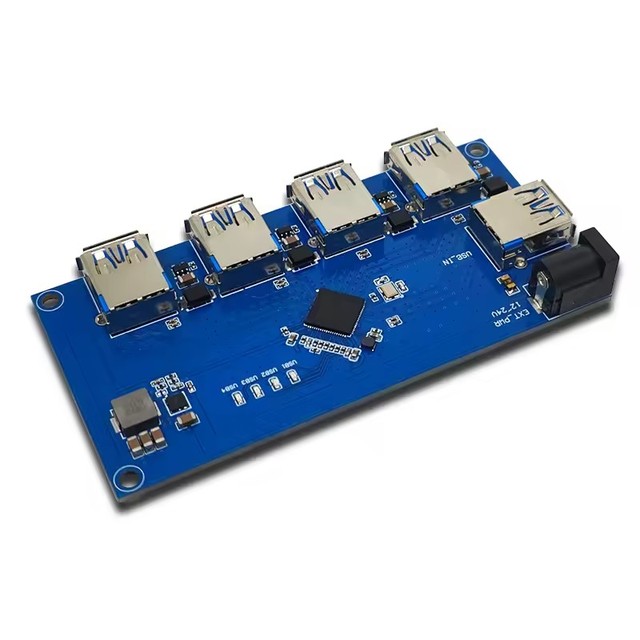

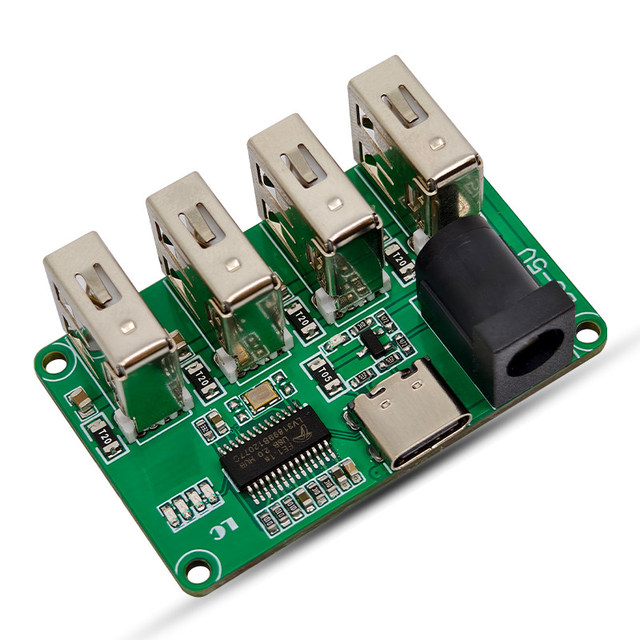

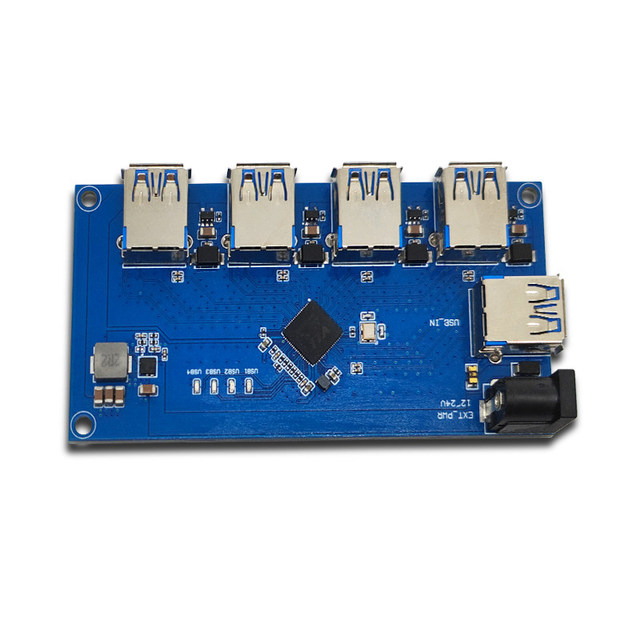

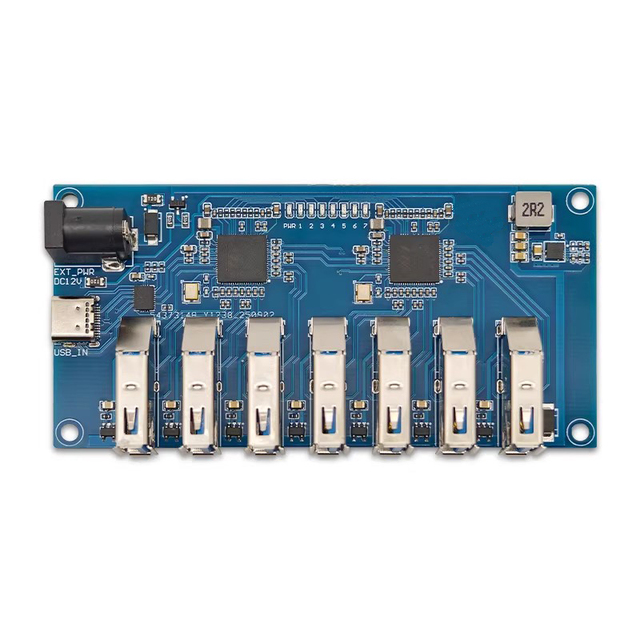

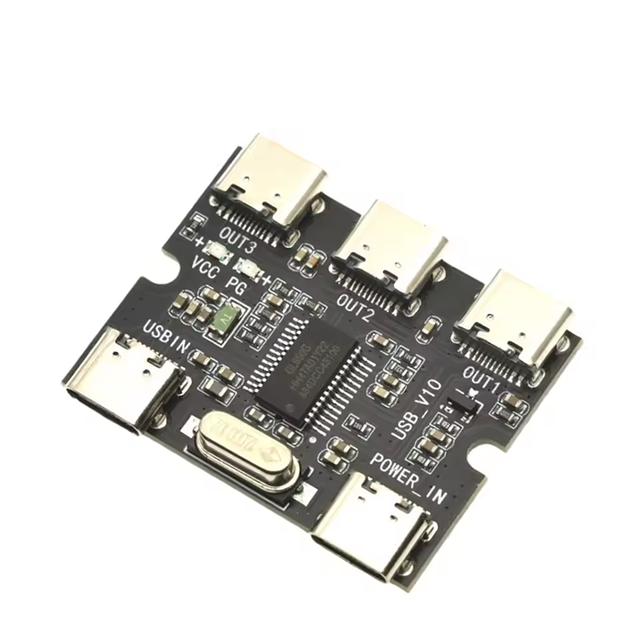

I have identified several high-performance USB 3.1 hub PCB modules currently available for sourcing:
