Usb Type B Pinout

The USB Type B market is undergoing a significant transition in 2026, shifting from a general consumer standard to a high-value specialized industrial and audio segment. While consumer electronics have largely adopted USB-C, demand for Type B has stabilized due to its mechanical reliability in mission-critical applications Alibaba.

Market Trends & Insights (2026 Forecast)

* Industrial Resilience: There is a 22% Year-over-Year (YoY) growth in orders for industrial-grade USB Type B connectors, driven by factory automation and IoT edge sensors where reversibility is less important than connection stability Alibaba.

* Premiumization of Legacy Tech: The market is moving away from low-cost cables toward mid-range ($7–$15) variants that offer 10,000+ bend cycles and zinc-alloy housings Alibaba.

* Sustainability Focus: Approximately 25% of retail buyers now prioritize cables with eco-friendly credentials, such as recycled PET jackets or FSC-certified packaging Alibaba.

* OTG & Audio Growth: The On-The-Go (OTG) functionality—enabled by the 4th pin (ID pin) in the 5-pin layout—remains a key driver for professional audio DACs and MIDI instruments AlibabaAlibaba.

USB Type B Pinout & Technical Standards

The standard 5-pin pinout configuration is critical for modern industrial and audio applications:

1. 1Pin 1 (VBUS): Power (5V). Standards now emphasize 24 AWG or thicker wire for stable 15W delivery Alibaba.
2. 2Pin 2 (D-): Data Negative.
3. 3Pin 3 (D+): Data Positive. (High-speed sync of 480 Mbps is essential for audio DACs Alibaba).
4. 4Pin 4 (ID): Identification. Enables Host/Device selection (OTG functionality) Alibaba.
5. 5Pin 5 (GND): Ground.

Emerging Product Categories

Based on recent sourcing data, the following product types are seeing increased B2B demand:

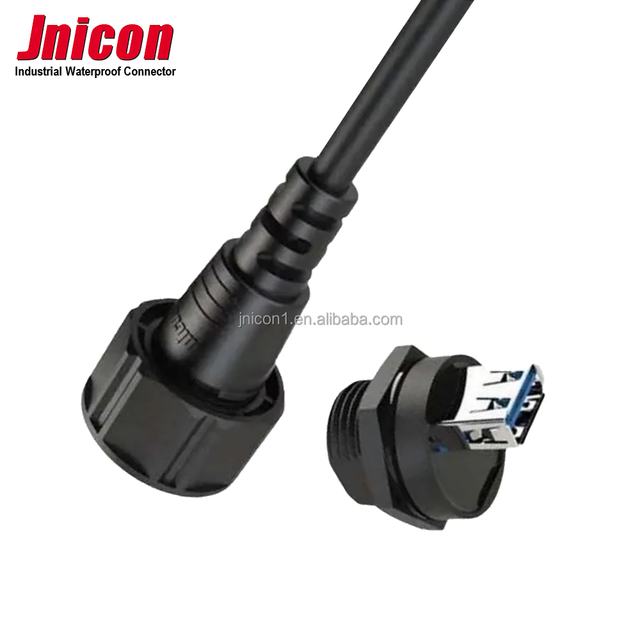

* Waterproof Connectors (IP67/IP68): Designed for outdoor sensor networks and medical devices AlibabaAlibaba.

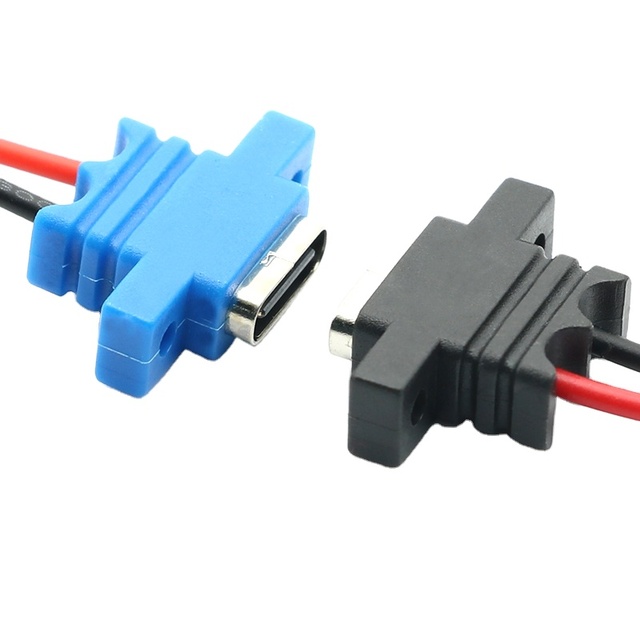

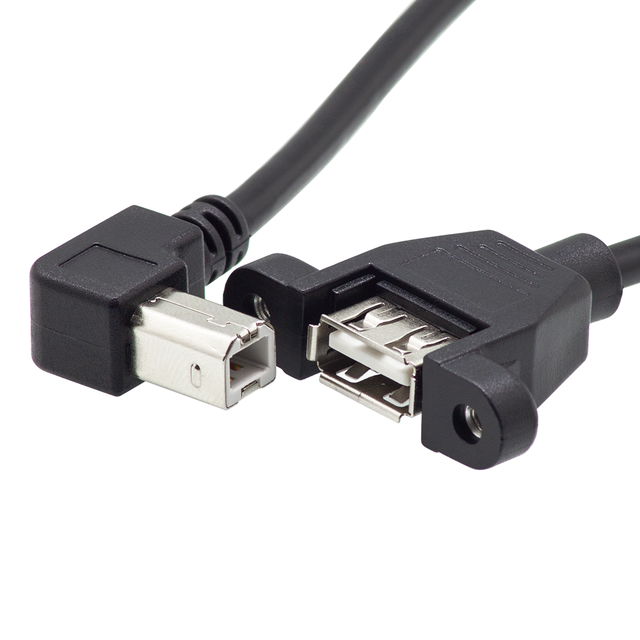

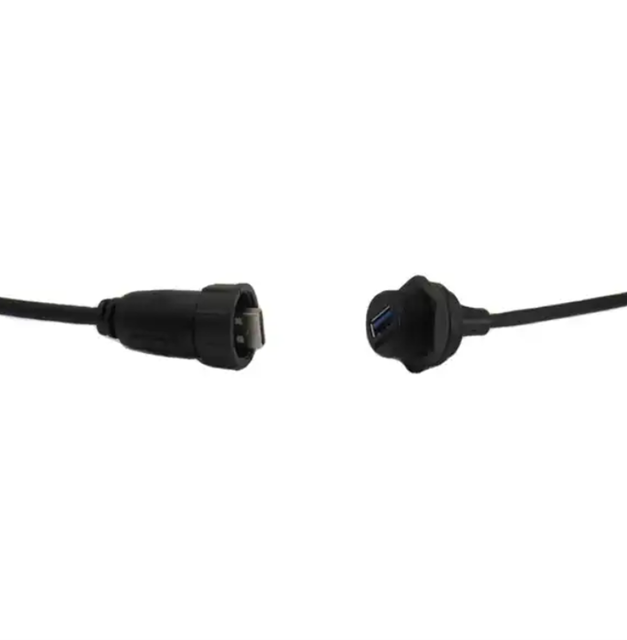

* Mechanical Screw-Locking: Preferred for robotic arms and high-vibration automation enclosures to prevent accidental disconnection AlibabaAlibaba.

* Audiophile-Grade DAC Cables: Utilizing Single Crystal Copper and silver plating to minimize signal jitter in professional audio setups AlibabaAlibaba.
