Voice Coil Foil

The phrase 'voice coil foil' primarily refers to the specialized use of aluminum or copper foil in the construction of loudspeaker voice coils. It serves two critical functions: as a former (bobbin) material and as a conductive lead-out for electrical connections. IqsdirectoryGoogle

Core Product Applications

* Voice Coil Formers (Bobbins): Aluminum foil (specifically alloy 1145) is a dominant material for formers because of its exceptional thermal conductivity, allowing voice coils to handle high power and temperatures up to 180°C. Iqsdirectory

* Lead-out Foils: In high-precision manufacturing, conductive foils are used as terminals on the bobbin. Voice coil wires are ultrasonically welded to these foils to ensure a reliable connection that can exceed 200°C without the corrosion risks associated with traditional soldering. Google

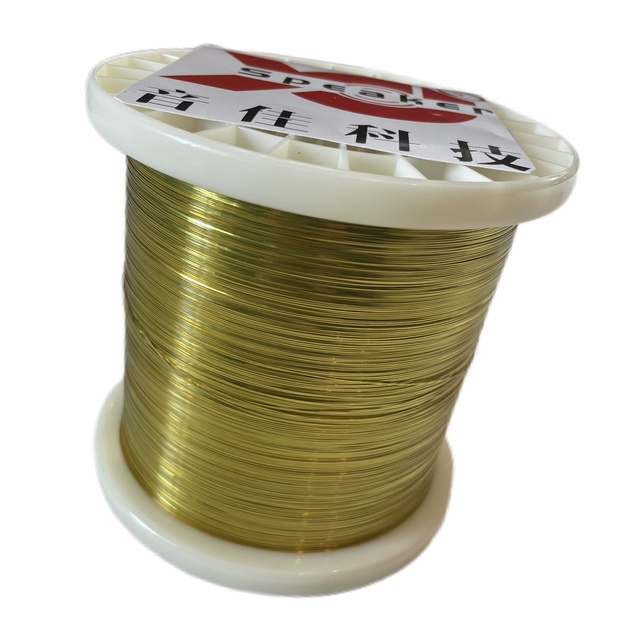

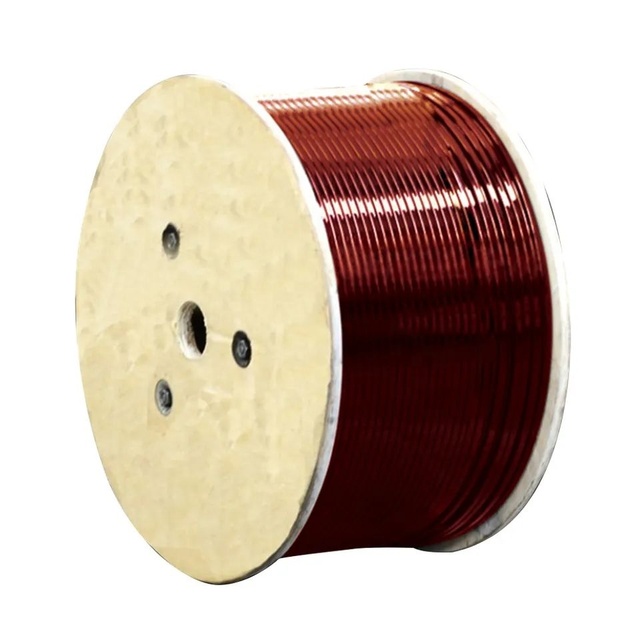

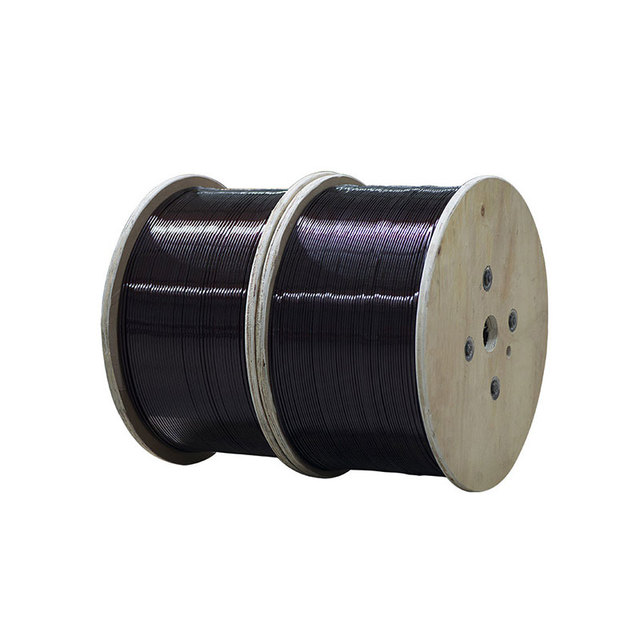

* Rectangular (Flat) Wires: A major trend is the replacement of round wires with rectangular wires created by precisely slitting thin copper or aluminum foil. These "flat wires" increase magnetic flux utilization and improve heat dissipation between coil layers. GoogleAlibaba

Market Trends & Technical Insights

* Efficiency Gains: The move toward rectangular wire is driven by the need for higher "packing density," eliminating the air gaps found in round wire designs and boosting overall speaker efficiency. Google

* Thermal Management: As power requirements increase, manufacturers are shifting from simple foil to advanced composites like polyimide-fiberglass, which can withstand over 300°C while avoiding the eddy current issues that sometimes plague aluminum foil bobbins. Iqsdirectory

* Precision Manufacturing: Modern production involves high-speed slitting of conductive foils followed by mechanical deburring to prevent burrs from puncturing thin insulation layers. Google
