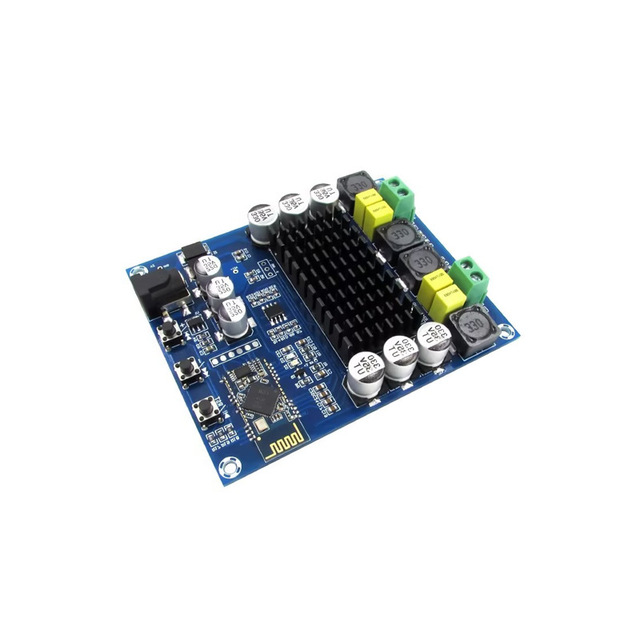

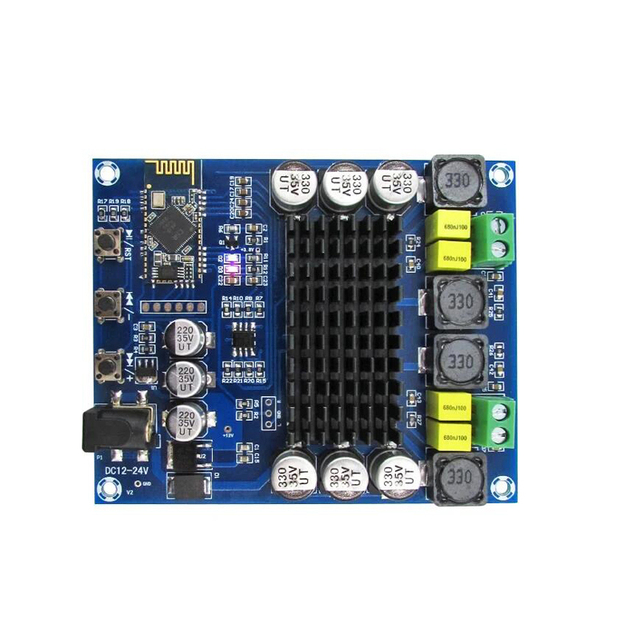

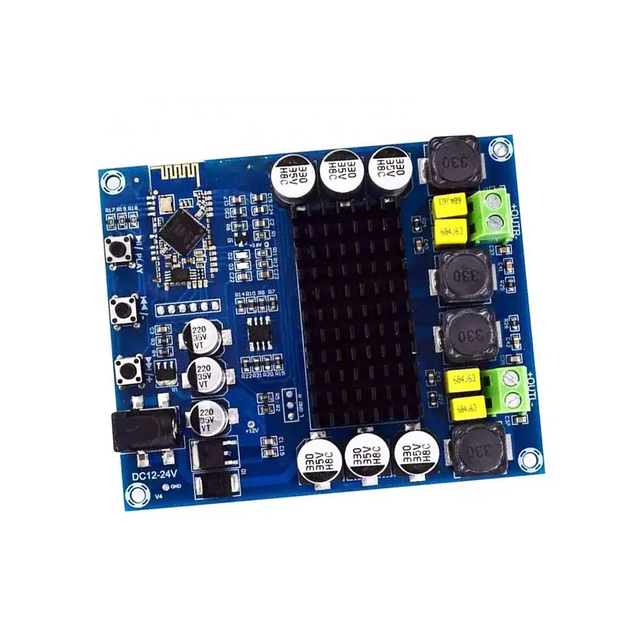

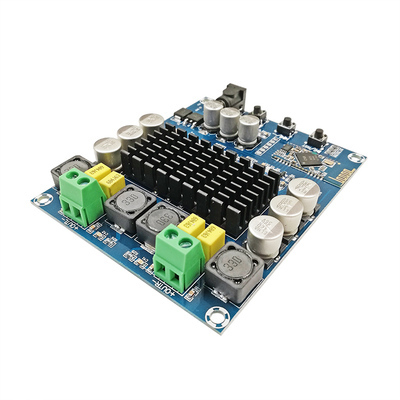

Xh M548 Bluetooth Amplifier

The XH-M548 Bluetooth amplifier is a widely available, budget-friendly Class D digital audio module based on the Texas Instruments TPA3116D2 chipset. While popular in DIY audio circles for its efficiency and low noise floor, it is characterized by significant discrepancies between marketing claims and real-world performance. TataylinoRees52

Technical Insights & Performance

* Power Discrepancy: Although marketed as 120W x 2 (240W total), actual testing shows a maximum output of 50W x 2. Tataylino This is due to the board using a single TPA3116 chip, which typically requires a dual-chip configuration for the 120W+ output levels. Tataylino

* Operating Range: It functions between 12V and 24V DC. Optimal performance is usually found at 24V with at least 5A of current. Rees52

* Connectivity Feature: A unique aspect of this board is its automatic muting logic. The Bluetooth module mutes the amplifier when no signal is present, resulting in a silent idle without the common hum or hiss found in cheaper modules. Tataylino

* Hardware Quirk: The 3.5mm jack is often mislabeled or mis-wired in generic versions as an Aux Output rather than an input, limiting the board's versatility without hardware modification. Tataylino

Market Trends (2025–2026)

The audio amplifier market is projected to reach approximately $4.84 billion to $5.99 billion by 2026, driven by a shift toward integrated wireless solutions. YahooMordorintelligence

* Wireless Standard Evolution: Current market momentum favors Bluetooth 5.0+ and Wi-Fi-bundled boards over the Bluetooth 4.0/4.2 versions found on the standard XH-M548. Alibaba

* Consumer Sentiment: Buyers are increasingly moving away from "DIY boards" toward finished, compact Hi-Fi desktop amplifiers (e.g., Aiyima or Fosi Audio) that offer better enclosure protection and verified specifications. HifiwalkerYoutube

Sourcing Data & Availability

Wholesale prices on B2B platforms typically range from $4.20 to $7.56 depending on quantity and supplier location (primarily Shenzhen and Chengdu).
