10 1 Balun

The market for 10:1 baluns (or high-impedance matching transformers) is specialized, primarily serving broadband amateur radio antennas and high-frequency communication systems. While exact 10:1 models are less common than 1:1 or 4:1 ratios, 12:1 models (approx. 600Ω matching) are the standard for high-impedance applications like Rhombic or V-Beam antennas Dxengineering.

Market Trends & Insights

• Frequency Expansion: Current trends focus on broadband performance, with newer models supporting a 10:1 operational frequency bandwidth rather than just a fixed impedance ratio DatainsightsmarketGlobalspec.

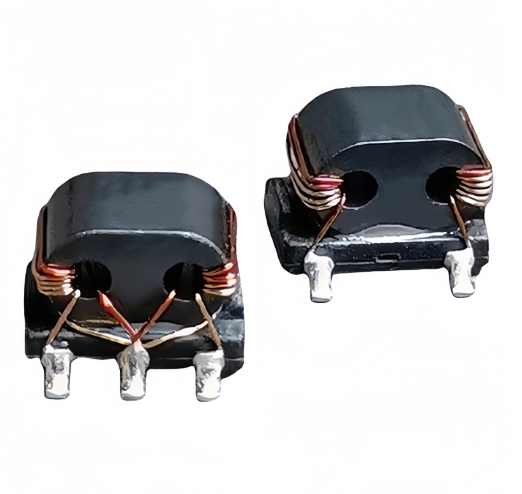

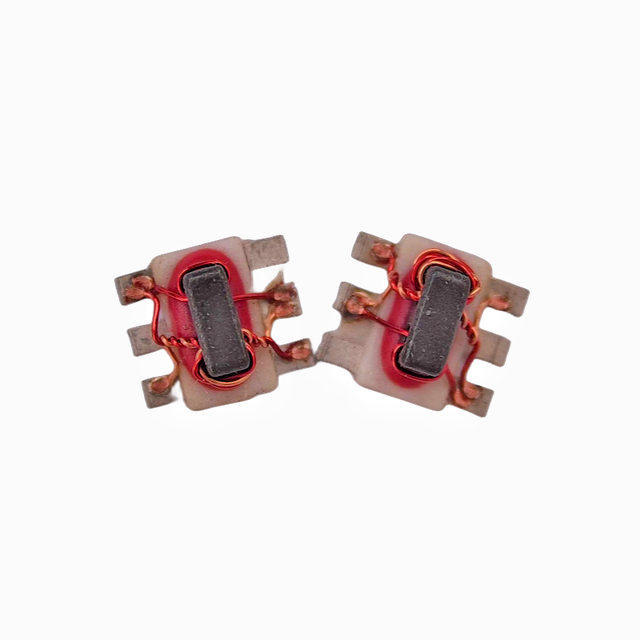

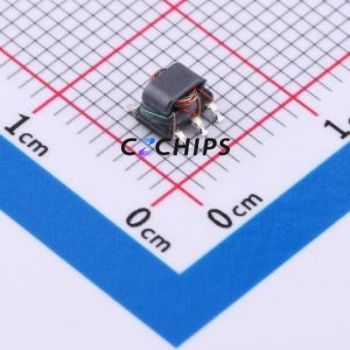

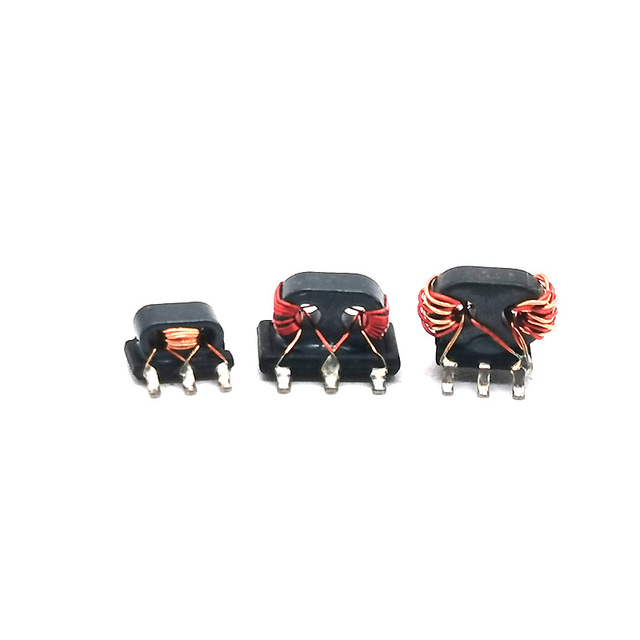

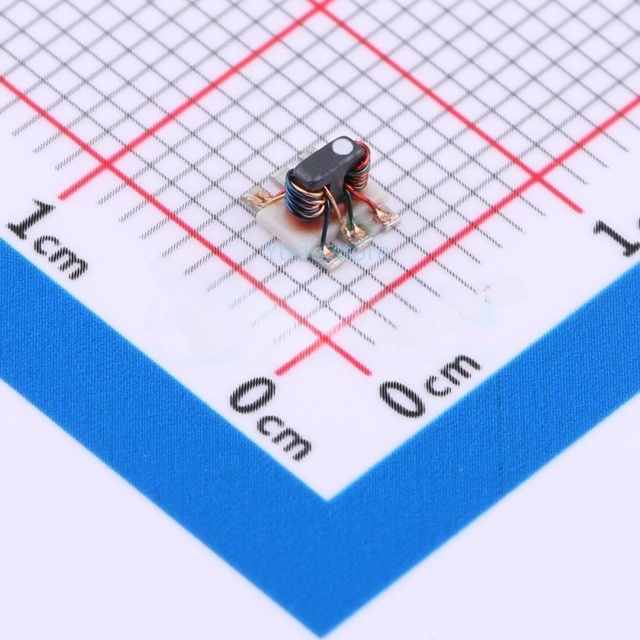

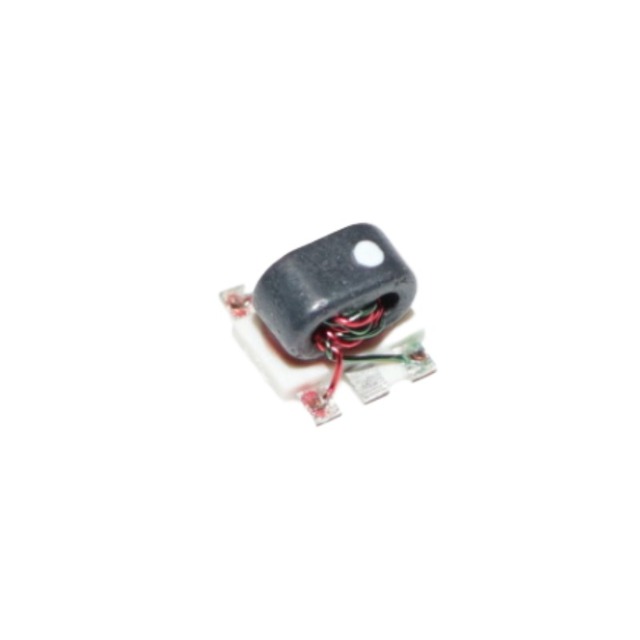

• Miniaturization: There is growing demand for SMD (Surface Mount) and chip-based balun transformers for 4G/5G wireless infrastructure and mobile devices Globalspec.

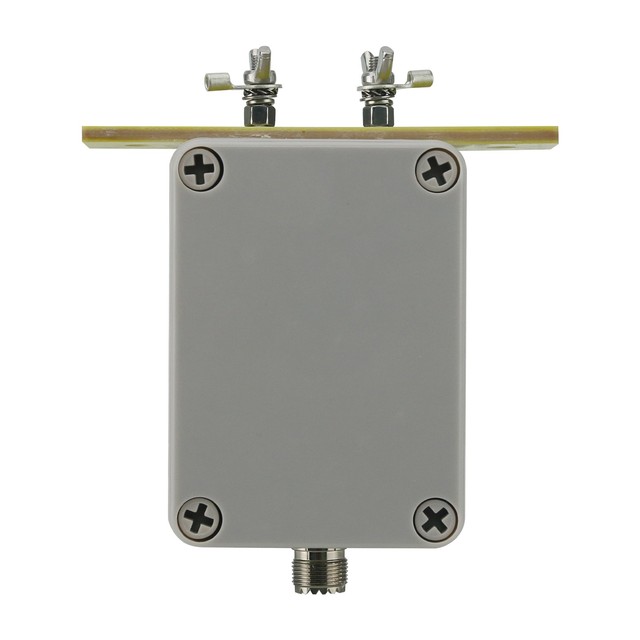

• High-Power Ruggedization: For the amateur radio market, there is a consistent trend toward Teflon-insulated and high-voltage models capable of handling 1.5kW to 5kW to accommodate extreme SWR conditions DxengineeringFacebook.

Supplier & Product Overview

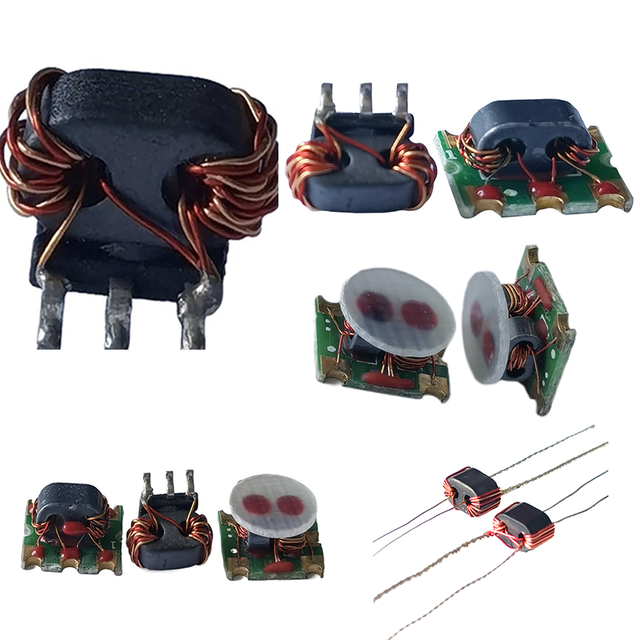

I have identified several key manufacturers and B2B suppliers. High-power antenna brands like DX Engineering and Balun Designs LLC dominate the radio equipment sector DxengineeringBalundesigns. In the electronic component sector, manufacturers such as Mini-Circuits, TDK, and Quarktwin Technology provide high-volume chip-based solutions Globalspec.

The attached files provide a comprehensive list of suppliers and available product options, including specifications for impedance transformers ranging from standard 75Ω-300Ω models to specialized high-power RF baluns.
