940 Transistor Pinout

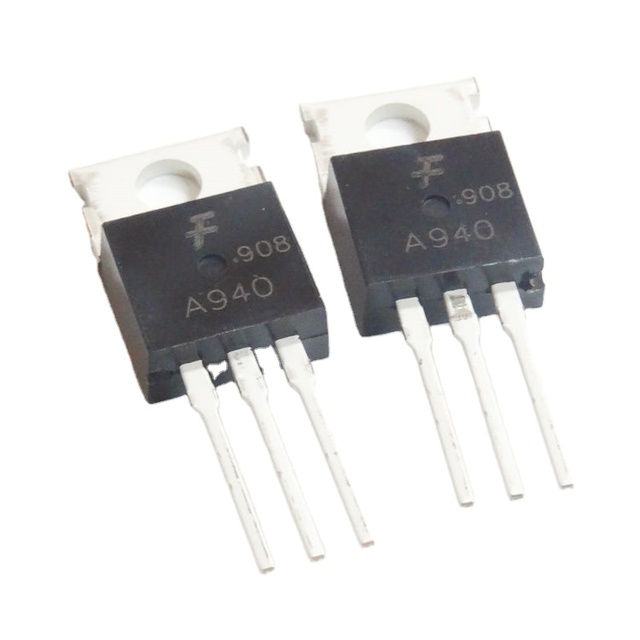

The 940 transistor (commonly known as the 2SA940 or KSA940) is a PNP power transistor typically housed in a TO-220 package UtmelOnsemi. It is widely used in high-voltage and medium-power applications, particularly in vertical deflection circuits for CRT monitors and audio power amplifiers ProjectpointOnsemi.

Technical Specifications & Pinout

Looking at the front of the transistor with the pins pointing downward:

• Pin 1: Base (Control terminal)
• Pin 2: Collector (Connected to the metal mounting tab)
• Pin 3: Emitter (Output terminal)

Maximum Ratings:

• Collector-Emitter Voltage ($V_{CEO}$): -150V
• Collector Current ($I_C$): -1.5A
• Collector Dissipation ($P_C$): 25W OnsemiUtmel
