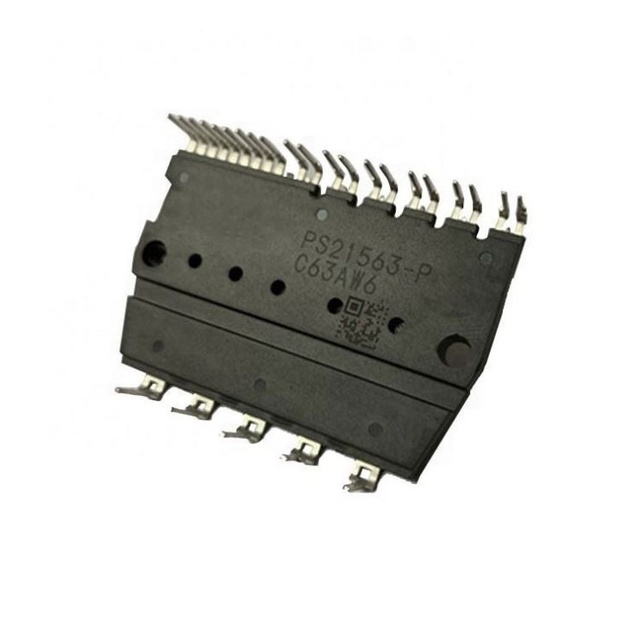

The phrase PS21563-P refers to a 5th Generation Mini-DIPIPM (Dual-In-Line Intelligent Power Module) manufactured by Mitsubishi Electric AlldatasheetRadwell. It is a critical component for high-efficiency, small-power motor control in household and industrial systems.

1. Product Specifications & Features

The PS21563-P is a high-integration module combining power switching with drive and protection logic Scribd.

* Ratings: 600V / 10A Digikey.

* Technology: Uses 5th Generation low-loss CSTBT (IGBT) technology for the 3-phase inverter bridge Alldatasheet.

* Protection: Integrated Short Circuit (SC) and Control Supply Under-Voltage (UV) protection with fault output signals AlldatasheetRadwell.

* Design: Compact 35-pin PowerDIP package (approx. 34.8mm) designed for simplified PCB layouts OvagaDigikey.

2. Market Status: Transition & Obsolescence

A critical market trend for this module is its Discontinued / Obsolete status from the original manufacturer OvagaRadwell.

* Secondary Market Dominance: Current trade is primarily driven by New Surplus and Refurbished stock from independent distributors to support legacy repairs Radwell.

* Successor Trends: The market has shifted toward newer generations, such as the PS21963-4S (6th Gen), which offers better thermal performance and higher efficiency in a similar 600V/10A class Alibaba.

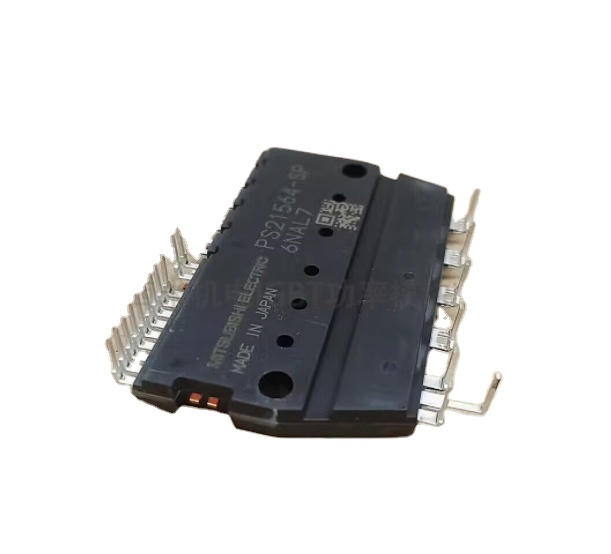

* Compatibility Risks: While similar modules like the PS21564-SP exist, they are often not pin-to-pin compatible (e.g., 37-pin vs 35-pin), requiring hardware modifications for replacement Ovaga.

3. Application & Industry Insights

Demand for this class of module is rooted in the "Smart & Efficient" movement in home appliances Mitsubishielectric.

* Core Applications: Small-power motor drives for air conditioners, washing machines, refrigerators, and small industrial servo drives AlldatasheetAlibaba.

* Trends: Increasing regulatory pressure for energy efficiency (e.g., Energy Star, ErP Directive) is pushing manufacturers toward integrated IPMs that reduce electromagnetic interference (EMI) and power loss MitsubishielectricAlibaba.

4. Sourcing & Availability (B2B)

Pricing and availability fluctuate significantly due to the obsolete status:

* Price Range: Wholesale listings on B2B platforms range from $0.10 (potentially high-volume or secondary parts) to $20.00+ for original, verified surplus units AlibabaAlibaba.

* Sourcing Warning: Buyers are increasingly shifting to "BOM List Quote" services for this part, as "New Original Imported" stock is becoming harder to verify without authorized test reports Alibaba.
